Classic PLC
- In accordance with IEC-61131 international standard develop
- Built-in simulator programming software, easy to study and easy to use
- Support Haiwell Cloud platform, can use Haiwell Cloud to do remote programming for Haiwell PLC
- Support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support multilevel networking
- Support Modbus TCP, Haiwellbus TCP, Modbus RTU/ASCII, Haiwellbus high speed protocol, freedom protocol
- Support linear interpolation, ARC interpolation, original point return, backlash compensation, electric original point redefine
- Expansion modules with Ethernet port and RS458 port, can be remote IO unit by distributed installation

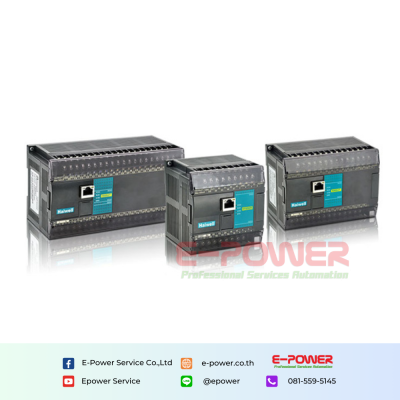

H Series PLC MPU (-e : Built-in Ethernet port)
| Ethernet Model | Model | Specification | |||||||
| 24V DC | 220V AC | 24V DC | 220V AC | DI | DO | Pulse Input | Pulse Output | COM port | Max exp. |
| H16S0R-e | H16S2R-e | H16S0R | H16S2R | 8 | 8 Relay | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 | |
| H16S0T-e | H16S2T-e | H16S0T | H16S2T | 8 | 8 Transistor NPN | 4 Channels A/B phase (8 points) 200KHz | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 |
| H16S0P-e | H16S2P-e | H16S0P | H16S2P | 8 | 8 Transistor PNP | RS232+RS485, Max 5 ports | 7 | ||
| H24S0R-e | H24S2R-e | H24S0R | H24S2R | 12 | 12 Relay | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 | |
| H24S0T-e | H24S2T-e | H24S0T | H24S2T | 12 | 12Transistor NPN | 6 Channels A/B phase (12 points) 200KHz | 6 Channels A/B phase (12 points) 200KHz | RS232+RS485, Max 5 ports | 7 |
| H24S0P-e | H24S2P-e | H24S0P | H24S2P | 12 | 12 Transistor PNP | RS232+RS485, Max 5 ports | 7 | ||
| H32S0R-e | H32S2R-e | H32S0R | H32S2R | 16 | 16 Relay | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 | |
| H32S0T-e | H32S2T-e | H32S0T | H32S2T | 16 | 16 Transistor NPN | 6 Channels A/B phase (12 points) 200KHz | 6 Channels A/B phase (12 points) 200KHz | RS232+RS485, Max 5 ports | 7 |
| H32S0P-e | H32S2P-e | H32S0P | H32S2P | 16 | 16 Transistor PNP | RS232+RS485, Max 5 ports | 7 | ||
| H40S0R-e | H40S2R-e | H40S0R | H40S2R | 20 | 20 Relay | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 | |
| H40S0T-e | H40S2T-e | H40S0T | H40S2T | 20 | 20 Transistor NPN | 8 Channels A/B phase (16 points) 200KHz | 8 Channels A/B phase (16 points) 200KHz | RS232+RS485, Max 5 ports | 7 |
| H40S0P-e | H40S2P-e | H40S0P | H40S2P | 20 | 20 Transistor PNP | RS232+RS485, Max 5 ports | 7 | ||
| H60S0R-e | H60S2R-e | H60S0R | H60S2R | 36 | 24 Relay | 4 Channels A/B phase (8 points) 200KHz | RS232+RS485, Max 5 ports | 7 | |
| H60S0T-e | H60S2T-e | H60S0T | H60S2T | 36 | 24 Transistor NPN | 8 Channels A/B phase (16 points) 200KHz | 8 Channels A/B phase (16 points) 200KHz | RS232+RS485, Max 5 ports | 7 |
| H60S0P-e | H60S2P-e | H60S0P | H60S2P | 36 | 24 Transistor PNP | RS232+RS485, Max 5 ports | 7 | ||
- MPU Points：16/24/32/40/60
- Program capacity：48K steps
- Expandable to Max. 7 Modules
- 220VAC or 24VDC power supply
- Use removable terminal blocks and use the rechargeable battery for saving real-time clock
- The platform update, using ARM+FPGA architecture, the processing speed increases more than 10 times
- Supports 2-axis linear /arc interpolation, 2-axis synchronous control, absolute address, relative address, backlashcompensation, electric original point redefine etc. 8 groups of AB phase 200KHz pulse output; 8 channels of 200KHz pulse input
- COM port: Built-in RS232 and RS485 ports, compatible with Modbus ASCII/RTU Protocol, up to 5 communicationportsandup to 7 non-communication modules
- Support Ethernet port and 5 other RS232/RS485 communication ports working simultaniously, support multilevel networktype.
