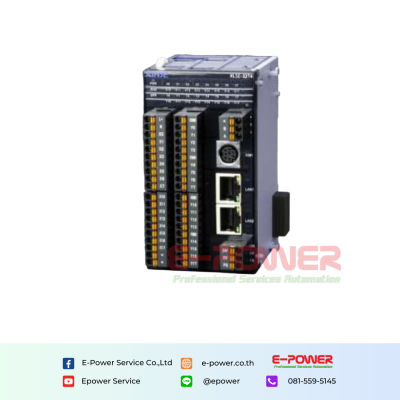

Product description
In addition to all the functions of XL5 series, it has faster processing speed (about 2-3 times that of XDM series), larger internal resource space (1M), RS232, RS485 and Ethernet ports, supports 2 ~ 10 channels pulse output, and supports the connection of right expansion module and left expansion module.
- Program capacity 1 MB
- I/O sequential control
- Max I/O 576 points
- Basic instruction 0.01-0.03US
- RS232, RS485, RJ45
- X-NET fieldbus
- 2-10 channels 10OKHz pulse output
- 3-10 channels high speed counter (single phase up to 80KHz, AB phase up to 50KHz)
XL5E series model list
| Model | ||||||
| AC power supply | DC power supply | |||||
| Relay output | Transistor output | Transistor relay mixed output | Relay output | Transistor output | Transistor relay mixed output | |
| NPN type | - | - | - | - | XL5E-16T | - |
| - | - | - | - | XL5E-32T | - | |
| - | - | - | - | XL5E-32T4 | - | |
| - | - | - | - | XL5E-64T6 | - | |
| XL5E-64T10 | ||||||
| PNP type | - | - | - | - | XL5E-32PT4 | - |
Performance specification
| Product series XL5E - | 16T | 32T | 32T4 | 64T6 | 64T10 | |
| Main body I/O | Total points | 16 | 32 | 32 | 64 | 64 |
| Input points | 8 | 16 | 16 | 32 | 32 | |
| Output points | 8 | 16 | 16 | 32 | 32 | |
| Max I/O points | 528 | 544 | 544 | 576 | 576 | |
| High speed positioning | General pulse output | 2 axes | 2 axes | 2 axes | 2 axes | 2 axes |
| Differential pulse output | - | - | - | - | - | |
| High speed input | Single/AB phase mode | 3 channels | 3 channels | 4 channels | 6 channels | 10 channels |
| Input mode | OC | OC | OC | OC | OC | |
| Expansion ability | Right expansion module | 16 | 16 | 16 | 16 | 16 |
| Left expansion module | 1 | 1 | 1 | 1 | 1 | |
| BD board | - | - | - | - | - | |
| Interruption | External interrupt | 6 | 10 | 10 | 10 | 10 |
| Timing interrupt | 20 | |||||
| Other interrupts | High speed counter interrupt, pulse interrupt | |||||
| Communication function | Communication port | 1 RS232 port, 1 RS485 port, 2 RJ45 ports | ||||
| Communication protocol | Standard Modbus ASCII/RTU communication, free format communication | |||||
| Bus function | X-NET fieldbus | |||||
| PWM pulse width modulation | Support | |||||
| Frequency measurement | Support | |||||
| Precise timing | 26 points ET0-ET25 (Only even numbers can be used) | |||||
| Multi-station control | Support | |||||
| Program execution mode | Cyclic scanning mode | |||||
| Programming method | Command, ladder chart, c language | |||||
| Power off holding | FlashROM and lithium battery (3V button battery) | |||||
| Basic instruction processing speed | 0.01-0.03US | |||||
| User program capacity (secret download mode) | 1MB | |||||
