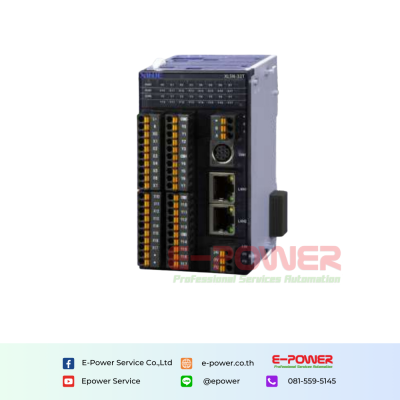

Product description
Compatible with most functions of XL5E series, it has built-in two-channel independent CAN communication, equipped with RS232, RS485, RJ45 port, supports two-channel pulse output, three-channel high-speed counting, and supports the connection of right expansion module and left expansion module.
- Program capacity 1 MB
- I/O sequential control
- Max I/O 544 points
- Basic instruction 0.01-0.03US
- RS232, RS485, RJ45
- 2 channels CAN communication, support CANopen and CAN free format communication
- Support Ethernet communication
- 2 channels 100KHZ pulse output
- 3 channels high speed counter (single phase up to 80KHZ, AB phase up to 50KHz)
XL5N series model list
| Model | ||||||
| AC power supply | DC power supply | |||||
| Relay output | Transistor output | Transistor relay mixed output | Relay output | Transistor output | Transistor relay mixed output | |
| NPN type | - | - | - | - | XL5N-32T | - |
Performance specification
| Product series XL5N - | 32T | |
| Main body I/O | Total points | 32 |
| Input points | 16 | |
| Output points | 16 | |
| Max I/O points | 544 | |
| High speed positioning | General pulse output | 2 axes |
| Differential pulse output | - | |
| High speed input | Single/AB phase mode | 3 channels |
| Input mode | OC | |
| Expansion ability | Right expansion module | 16 |
| Left expansion module | 1 | |
| BD board | - | |
| Interruption | External interrupt | 10 |
| Timing interrupt | 20 | |
| Other interrupts | High speed counter interrupt, pulse interrupt | |
| Communication function | Communication port | 1 RS232 port, 1 RS485 port, 2 RJ45 ports |
| Communication protocol | Standard Modbus ASCII/RTU communication, free format communication, Ethernet communication, CAN communication | |
| Bus function | CANbus control, X-NET fieldbus | |
| PWM pulse width modulation | Support | |
| Frequency measurement | Support | |
| Precise timing | Support | |
| Multi-station control | Support | |
| Program execution mode | Cyclic scanning mode | |
| Programming method | Command, ladder chart, C language | |
| Power off holding | FlashROM | |
| Basic instruction processing speed | 0.01-0.03us | |
| User program capacity (secret download mode) | 1MB | |
