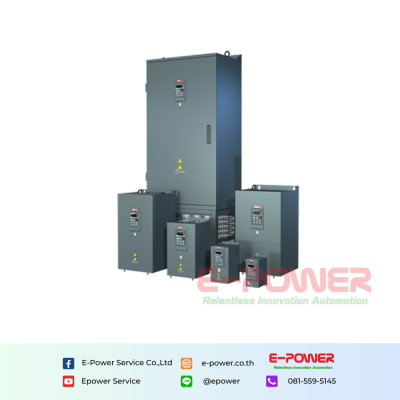

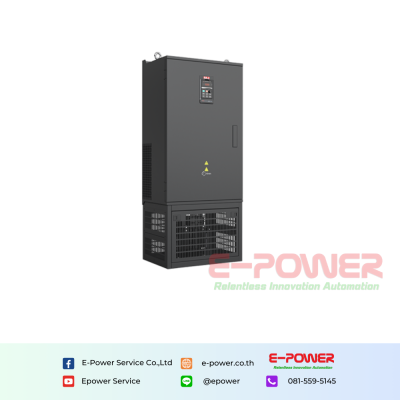

PDS33 Series Solar Pump Controller

PDS33 solar pump controller is a device that takes in DC power from the PV arrays to drive the water pump with MPPT algorithm, ensuring the maximum conversion efficiency and output of the PV module. It aims to provide water supply solutions for areas with water scarcity and no electricity or unreliable electricity supply. 275-380VDC: 2.2kW 500-750VDC: 2.2-200kW

หมวดหมู่ : Inverter , SAJ , Solar Pump Controller

แบรนด์ :SAJ

รายละเอียดสินค้า

Specifications

Item		Specification
Control Characteristics	Control Mode	V/F Control
	Starting Torque	1Hz 100%
	Speed Adjustment Precision	1:20
	Speed Holding Precision	± 1.0%
	Overload Capacity	150% rated current for 60s; 180% rated current for 1s.
	V/F Curve	Linear, Square curve
	Accleration and deceleration Time	The range of acceleration and deceleration time is 0.1 ~ 800s
Input/Output Characteristics	Input Voltage Range	AC 220V, 380V ±15% / DC 275-380V/ DC 500-750V
	Input Frequency Range	50/60 Hz, fluctuation range: ±5 %
	Output Voltage Range	AC 0-220V/ 0-380V
	Output Frequency Range	0~100Hz, factory default 50Hz
External terminal interface	Programmable digital input	6-way digital input terminals
	Communication Interface	Isolated RS485 for communication between VFDs
	Programmable analog input	2-way, it can be set as voltage or current input by adjustind parameters; input voltage range 0-10V; input current range 0/4-20mA
	Output terminal port	1 open collector output terminal 2 relay output terminals (1 channel below 7.5 kW) 3 analog output terminals (1 channel below 7.5 kW)
Basic Functions	Command running channel	3 channels: Operation panel setting, Digital input terminaunication, Serial common port. It can be switched in a varuty of ways.
	Frequency Soure	6 kinds of frequency source selection: panel potentiometer, panel up and down key, analog voltage signal, analog current signal, PID mode, communication given mode, MPPT;
	AVR Function	When grid voltage changes, it keeps output voltage constant automatically. By defult, it does not work at deceleration
	Stall Control	Automatically limits current and voltage at running period to prevent tripping caused by frequency over current/ over voltage
	Protection function	Input-output phase loss protection, overcurrent protection, overvoltage protection, undervoltage protection, overheat protection, overload protection, power relay fault detection,etc
Environment	Installation Environment	Installation environment should have be without direct sunlight, drive can be dust-proof and splash-proof. Note: Although interver has a high protection level, it is not explode, warter-proof products and please do not immerse in water.
	Altitude	Lower than 1000m. If above 1000, service in derated capacity. Derate 1% capacity every 100m increase in height.
	Environment Temperature	-10°C ~ +40°C, service in derated capacity for 40°C ~ 50°C. Derate 4% capacity every 1°C increase in temperature.
	Vibration	< 5.9m/ S2 (0.6G)
	Storage Temperature	-40°C ~ +70°C

Product Model

Controller Model	PDS33-2S2R2	PDS33-4T2R2	PDS33-4T004	PDS33-4T5R5
Input Data
Max Input Voltage (Voc)	DC 450V	DC 800V
Recommended Voltage, at MPP	DC 275-380V	DC 500-750V
Recommended PV Array Power [kW]	2.7 ~ 3.5	2.7 ~ 3.5	4.8 ~ 6.4	6.6 ~ 8.8
Alternate AC Generator
Input Voltage	AC220V (±15%)	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	23	5.8	10.5	14.6
Power and VA Capability [kVA]	4	4	5.9	8.9
Output Data
Output Voltage, Rated	AC220V (±15%)	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	9.6	5.1	9	13
Output Power, Rated [kW]	2.2	2.2	4	5.5
Output Frequency	0 ~ 50Hz/60Hz

Controller Model	PDS33-4T7R5	PDS33-4T011	PDS33-4T015	PDS33-4T18R5
Input Data
Max Input Voltage (Voc)	DC 800V
Recommended Voltage, at MPP	DC 500-750V
Recommended PV Array Power [kW]	9 ~ 12	13.2 ~ 17.6	18 ~ 24	22.2 ~ 29.6
Alternate AC Generator
Input Voltage	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	20.5	26	35	38.5
Power and VA Capability [kVA]	11	17	21	24
Output Data
Output Voltage, Rated	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	17	25	32	37
Output Power, Rated [kW]	7.5	11	15	18.5
Output Frequency	0 ~ 50Hz/60Hz

Controller Model	PDS33-4T022	PDS33-4T030	PDS33-4T037	PDS33-4T045
Input Data
Max Input Voltage (Voc)	DC 800V
Recommended Voltage, at MPP	DC 500 - 750V
Recommended PV Array Power [kW]	26.4 ~ 35.2	36 ~ 48	44 ~ 59.2	54 ~ 72
Alternate AC Generator
Input Voltage	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	46.5	62	76	92
Power and VA Capability [kVA]	30	40	57	69
Output Data
Output Voltage, Rated	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	45	60	75	91
Output Power, Rated [kW]	22	30	37	45
Output Frequency	0 ~ 50Hz/60Hz

Controller Model	PDS33-4T055	PDS33-4T075	PDS33-4T093	PDS33-4T110
Input Data
Max Input Voltage (Voc)	DC 800V
Recommended Voltage, at MPP	DC 500 - 750V
Recommended PV Array Power [kW]	66 ~ 88	90 ~ 120	112 ~ 149	132 ~ 176
Alternate AC Generator
Input Voltage	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	113	157	180	214
Power and VA Capability [kVA]	85	114	134	160
Output Data
Output Voltage, Rated	Three Phase AC 380V (±15%)
Max Amps (RMS) [A]	112	150	176	210
Output Power, Rated [kW]	55	75	93	110
Output Frequency	0 ~ 50Hz/60Hz
