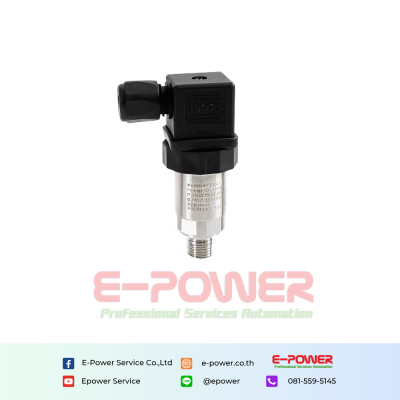

HPT300-S Universal Pressure Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
The HPT300-S series Pressure transmitter with ceramic chip applied in the engine fuel pressure, hydraulic pressure and gas pressure industries, which adopted the Flush Ceramic piezoresistive technology.
Application :
- Critical industrial applications
- Harsh environments in the process industry
- Chemi-industry
- Metallurgy
- Power station
- Hydrology, Agriculture
Advantages
01 Fully Welded Stainless Steel Housing
02 Overcurrent /overvoltage protection
03 Full sealed high stability impact design
04 EMI/RFI Protection
05 Small temperature drift, automatically compensates for changes in barometric pressure
Technical Data
Pressure Sensor Specifications| Measuring range | -1 to 1..0 to 0.1...0 to 600bar |
| Accuracy | Âą1.0%F.S (Typical) Âą0.5%F.S (By Customized, excluding ranges <10bar) |
| Stability | 0.2%F.SÂą0.05%/Year |
| Working Temp | -20~80(corrosive medium); -40~80(non-corrosive medium) |
| Electrical connection | DIN43650 Hirschmann Connector, IP65 Direct cable outlet IP67; M12 4 Pins connector P67; Packard Connector IP65. |
| Temperature Compensation | 0~50 |
| Output | 4-20mA,0-5V,0-10V,0.5-4.5V |
| Power Supply | 7-30Vdc, 8-30Vdc, 13-30Vdc, 5Vdc |
| Pressure connection | 1/8"NPT male, 1/4"NPT male 1/4"NPT female, G1/2" male, G1/4"male/female, 7/16"-20 UNF male are optional. |
