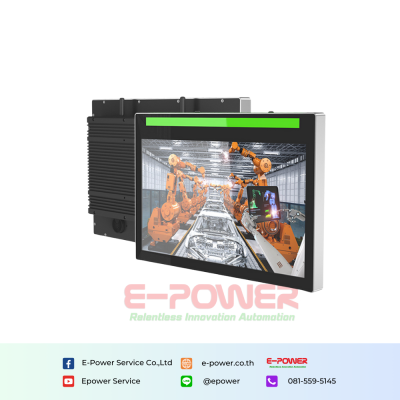

Senke SK-YPC-AD215H / 21.5" PCAP All in One Touch Screen Industrial PC
MODEL : SK-YPC-AD215H
21.5 Inch ADseries DB01 series
- Size: 15.6", 21.5"
- Brand new industrial screen display, high-definition and bright colors
- Built-in industrial motherboard with powerful performance, optional configuration, flexible interface expansion and strong compatibility
- Customized aluminum alloy die casting mold
- Customized industrial-grade aluminum profile front frame
PRODUCT OVERVIEW
The industrial control all-in-one machine adopts industrial-grade aluminum profile structure, customized aluminum alloy die-casting mold, and efficient fin-type heat dissipation structure. It can adapt to various complex and harsh application scenarios with high dust and work stably in high and low temperature environments.
The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.
PRODUCT FEATURES
The product has passed and obtained high and low temperature, EMC, safety and other test reports
Supports multiple installation methods such as embedded/wall mount/desktop base/cantilever bracket
PRODUCT PARAMETERS
| Basic parameters | Host Configuration | ||
|---|---|---|---|
| Screen Size | 21.5 inches | Motherboard | DB01 series Senke industrial motherboard |
| Resolution | 1920*1080 | Processor | Intel I5-7200U |
| Screen ratio | 16:9 (H:V) | Platform | Kaby Lake |
| brightness | 250cd/ãĄ (Typ.) | Memory | DDR 4 4G |
| Contrast | 3000 : 1 | Hard Drive Capacity | 128G SSD |
| Display Color | 16.7M, 72% NTSC | Graphics | Intel HD Graphics 620 |
| Reaction time | 13/5 (Typ.)(Tr/Td), 20 (Typ.)(G to G) ms | BIOS | AMI UEDI BIOS |
| Viewing angle | 89 /89 /89 /89 (Typ.)(CR 10) | Operating system | Windows 10 |
| Dimensions | 523.5*342.5*58.5mm | Host interface | |
| Touch points | 10 O'Clock | WIFI | 2.4G+5G+Bluetooth (optional) |
| Touch Type | G+G capacitor | HDMI | 1*HDMI OUT |
| Working environment | 0°C~50°C (10~90% without condensation) | USB | 2*USB3.0, 2*USB2.0 |
| Storage environment | -20°C~70°C (10~90% without condensation) | LAN | 1* LAN/2* LAN (optional) Default 1*LAN |
| Power Specifications | DC: 12V AC: 220V~60Hz | switch | 1*Start switch + indicator light |
| Material/Craftsmanship | Aluminum profile structure, aluminum alloy cast aluminum back cover | DC Power Supply | 1*DC IN Phoenix terminal |
| Color | Black | COM | 2*DP9 (RS232/RS485 signal optional, RS232 signal by default) |
| Installation | Wall-mounted, desktop | Audio | 1* Microphone voice input two-in-one socket |
