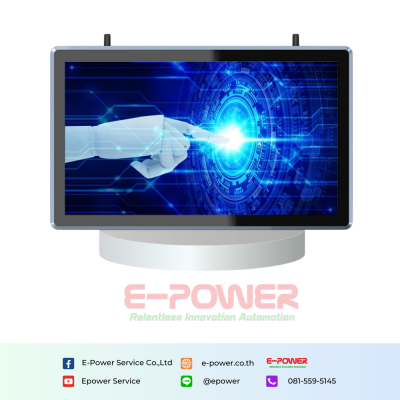

MODEL : SK-YPC-MX19H
19 Inch MXseries Fully Enclosed Structure Design
- Size: 12.1", 15", 15.6", 17", 19", 18.5", 19", 21.5"
- KDS kitchen display system
- Cold chain cold storage display board
- Automation control terminal
- HMI human machine interface
- MES system execution terminal
- Visual inspection terminal
- SOP workstation.
PRODUCT OVERVIEW
The industrial tablet computer is made of all-aluminum material, customized LCD screen fully laminated touch screen technology, customized exclusive die-casting mold, and efficient fin-type heat dissipation structure, which can effectively reduce the water mist phenomenon on the display screen caused by high and low temperature changes, and adapt to various complex and harsh application scenarios with high dust and high and low temperature environments to work stably.
The whole machine is equipped with a variety of professional interfaces. While meeting the needs of conventional application scenarios, it can also add customized functions and interfaces according to different application scenarios.
PRODUCT FEATURES
1. The LCD display is full fit with touch screen technology, and the colors are higher-definition
2. Fully enclosed structure design to eliminate oil fume and water mist
3. The built-in industrial motherboard has powerful performance, optional configurations, flexible interface expansion, and strong compatibility.
4. Customized backlight integrated ultra-thin structure, customized die-cast aluminum alloy mold
5. The product has passed and obtained high and low temperature, EMC, safety and other testing reports
6. Supports multiple installation methods such as embedded/wall-mounted bracket/desktop base/cantilever bracket
SPECIFICATION
| Basic parameters | Host Configuration | ||
|---|---|---|---|
| screen size | 19 inches | Motherboard | DB01 series industrial motherboard |
| Resolution | 1280*1024 | processor | Intel i5-3317u |
| screen ratio | 5:4 (H:V) | platform | Ivy Bridge |
| brightness | 250 cd/m² (Typ.) | Memory | DDR3 4G |
| Contrast | 1000:1 (Typ.) (Transmission) | Hard drive capacity | 128G |
| Display Color | 16.7M (6-bit + Hi-FRC) | Graphics | integrated graphics Intel HD Graphics 4000 |
| Reaction time | 30 (Typ.)(Tr+Td) ms | BIOS | 1. AMI BIOS 2. 64M SPI BIOS |
| Viewing angle | 85/85/80/80 (Typ.)(CR10) | operating system | Windows 7 |
| Dimensions | 424*351*48mm | Host interface | |
| Hole Size | 416*343mm | DC Power Supply | 1 * DC IN Phoenix terminal |
| Touch Type | G+G capacitor | HDMI | 1*HDMI OUT |
| working environment | 0°C~50°C (10~90% without condensation) | USB | 2*USB3.0, 4*USB2.0 |
| Storage environment | -20°C~70°C (10~90% without condensation) | COM | 2*DB9-RS232/RS485 (optional) 4*DB9-RS232 |
| Power Specifications | DC: 12V AC: 220V~60Hz | LAN | 1 * LAN/2* LAN Onboard RTL 8111 Gigabit Ethernet |
| Material\Craftsmanship | Aluminum alloy, die-casting integrated molding process | WIFI | 2.4G (standard) 5.0G (optional) |
| Color | grey | Audio | 1*PHONE (output) |
| Installation | Embedded, wall-mounted, desktop | Switch | 1*Start switch + indicator light |
