B Series

 IoT Cloud HMI = HMI + IoT Gateway + DTU

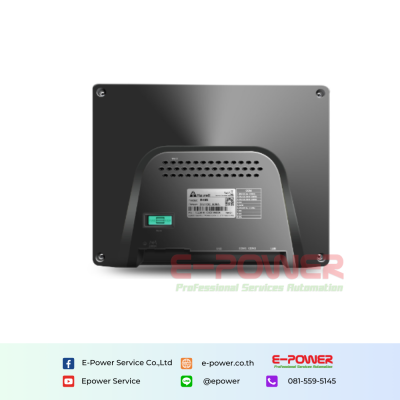

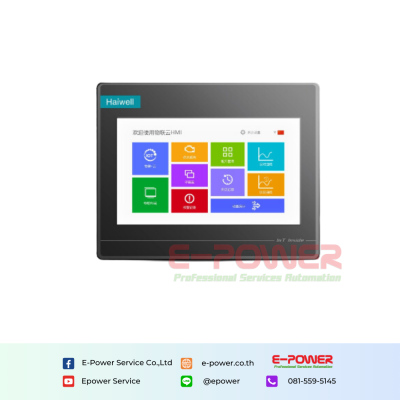

B7H-W Haiwell 7 inch Cloud HMI IoT Touch Screen B Series IoT Support Wifi with Free Haiwell Cloud SCADA

B7H-W Specification

Model : B7H-W
TFT Screen : 7 inch
Resolution : 1024×600 HD
Storage : 4G+512M
LAN : 1 Chanel
COM : 2 Chanel
USB : 2 Chanel
Voice,WiFi
Hole Size : 193 x 138 mm
Dimension : 200 x 146 x 37 mm

Highlights

1. Remote Monitoring & Control Real-time remote control via mobile phones, laptops, computers, notebooks and various smart devices
2. There is an application (Haiwell Cloud) that supports both IOS and Android operating systems and can be accessed via PC via cloud.haiwell.com
3. There is a security system for accessing the system with security mechanisms A key, B Key, visitor
4. Can export data loggers to Excel files in real time at any time
5. There are various notification systems via the application (Haiwell Cloud)
6. Can remotely download and upload programs online, firmware online anywhere, anytime
7. Support MQTT protocol and connect to ERP/MES/database
8. Support PLC Mitsubishi, Omron, Siemens, Schnieder, Delta, MQTT Modbus TCP/RTU and others

 IoT Cloud HMI = HMI + IoT Gateway + DTU

C Series IoT Cloud HMI
