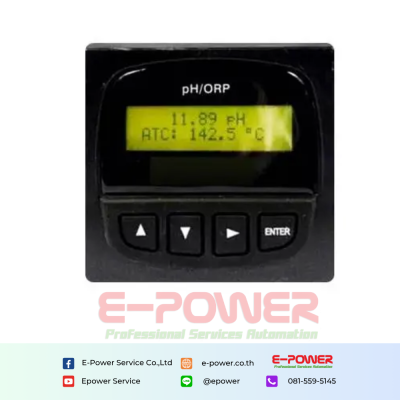

Online PH/ORP Controller & Sensor PC-8750

Brands :JIRS

Product description

Description

Intelligent industry online PH/ORP monitor/controller.
Three-point calibration function, the function of prompting the user to follow the calibration process, automatic identification of calibration liquid and the error calibration, easy safe humanized calibration mode.
High input impedance, programmable manual/Auto temperature compensation, the adaptation of various types of PH/ORP electrode.
ABS material meter housing with NEMA4X/IP65.
Original parameters function recovery.
With current, control, pulse, communicate multiple output to satisfy customer different request.

Main Technique Specifications

Function Model	PH, ORP-8850 Single channel PH or ORP controller
Range	PH: 0.00 ~ 14.00 pH; ORP: -2000 ~ + 2000mV
Accuracy	pH: ±0.1 pH; ORP: ±2mV
Temp. Comp.	PH: The 25°C basis, Manual/Auto temperature compensation
Operation Temp.	-25°C ~ 125°C
Sensor	Two/ Three Composite PH electrode, ORP electrode
Calibration	4.00; 6.86; 9.18 Three Calibration
Display	2×16 Bit LCD
Current output signal	Insolated Migration 4 ~ 20mA
Control output signal	Programmable: ON high limit or low limit relay
Pulse output	The optical isolation open-collector, output signal, the max pulse rate: 400 Pulses/Min
Communication output	RS485, BAUD RATE: 2400, 4800, 9600
Power	DC 18 ~ 36V
Working environment	Ambient Temp. 0 ~ 50°C, Relative Humidity 85%
Dimensions	96×96×46mm(H X W X D)
Hole size	92×92mm( H X W)
Installation Mode	Panel Mounted (Embedded)
