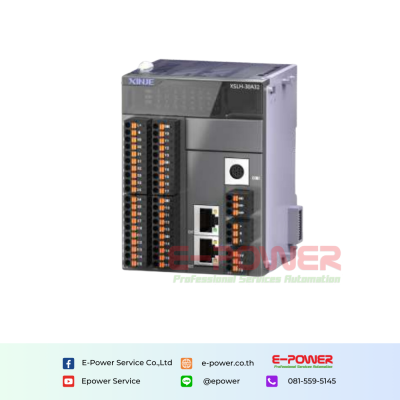

XSLH Series
Product description
The small PLC developed based on Codesys platform can significantly improve the programming efficiency and support the PLCopen programming specification. Many standard function libraries can be referenced to develop proprietary function blocks and instruction libraries.
- EtherCAT motion control
- Support EtherCAT remote IO
- 32 channels electronic CAM
- Ethernet communication
- Online download
Performance specification
| Product series XSLH - | 30A32 | |
| Main body I/O | Total points | 30 |
| Input points | 14 | |
| Output points | 16 | |
| Max I/O points | 542 | |
| High speed positioning | General pulse output | 4 axes (not supported right now) |
| Differential pulse output | - | |
| High speed input | Single/AB phase mode | 4 channels |
| Input mode | 2 channels differential signal + 2 channels OC | |
| Expansion ability | Right expansion module | 16 |
| Left expansion module | 1 | |
| BD board | - | |
| External interrupt | 10 | |
| Communication function | Communication port | 1 RS232 port, 1 RS485 port, 2 RJ45 ports |
| Communication protocol | Standard Modbus ASCII/RTU communication, Ethernet IP, TCP / IP, UDP, OPC UA, free format protocol, CAN communication | |
| Bus function | EtherCAT bus control (max 32 nodes) | |
| Programming method | ST, SFC, FBD, CFC, LD and IL | |
| Main processor | Cortex-A8, dominant frequency 1 GHz | |
| User program capacity | 32MB | |
| Data capacity | total points | 30MB |
| Power off holdig | 2MB | |
