XF-E16YT
Product description
XF Series Blade IO System

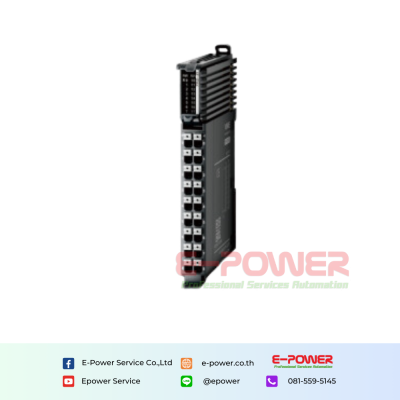

XF-E16YT
Ordinary digital output module
Product Features
- 16 channel digital output
- NPN transistor output
- 12mm width design
Product specification
| Project | Specification |
| Model | XF-E16YT |
| Output channel | 16 |
| Rated load voltage | DC24V(DC10.2V-28.8V) |
| Maximum load current | 0.5A/1 point, 4A/module |
| Surge current protection | Support |
| Leakage current at OFF | Below 0.1 mA |
| Maximum voltage drop at ON | 0.5V-1V |
| Output ON^OFF response time (hardware) | 0.1ms |
| Output OFF^ON response time (hardware) | 0.1ms |
| Derating | Derate by 50% when operating at 55 ° C (while the output current of ON does not exceed 2A), or by 10 ° C when the output point is fully ON |
