Product description
XF Series Blade IO System

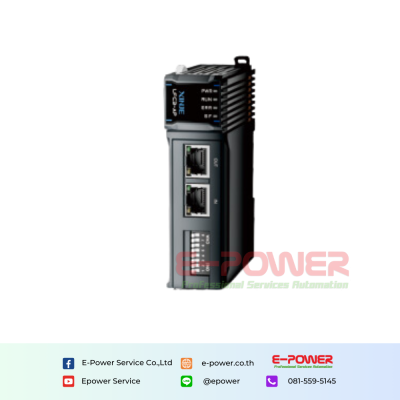

LFC3-AP
Ordinary digital output module
Product Features
- Blade expansionz diversified combination
- Compact structure/ saving installation space
- Straight plug terminals, easy and reliable wiring
- Support firmware upgrade for network ports
- Support hardware static station number settings
- High speed bus microsecond response
- Maximum support for 32 expansion IO modules
Product specification
| Project | Specification |
| Model | LFC3-AP |
| Rated voltage | DC24V |
| Voltage allowable range | DC21.6V~26.4V |
| Input Current | 120mA DC24V |
| Allow instant power outage time | 10ms DC24V |
| Inrush Current | 10A DC26.4V |
| Power protection | Anti reverse protection, overcurrent protection, surge absorption |
| Network protocol | EtherCAT |
| Single AP process data | Input maximum 1024 bytes, output maximum 1024 bytes |
| Network interface | 2 RJ45 ports |
| Physical layer | 100BASE-TX |
| Synchronization cycle | Support 250us, 500us, 1000us, 2000us, 4000us |
| Connection Rate | 100Mbps, full duplex |
| Transmission distance | < 100m between two nodes |
| Topological structure | Linetype |
| Transmission medium | Category 5 and above |
| No configuration required when replacing devices | Support (EtherCAT modules of the same type) |
| Number of expansion modules | Supports 32 modules |
| Firmware upgrade | Support |
| Address setting | Configured by dial switch (0-255) or assigned by the main station |
