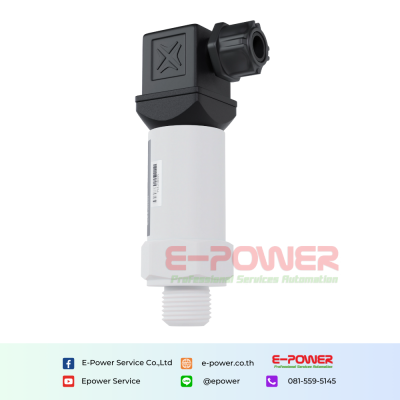

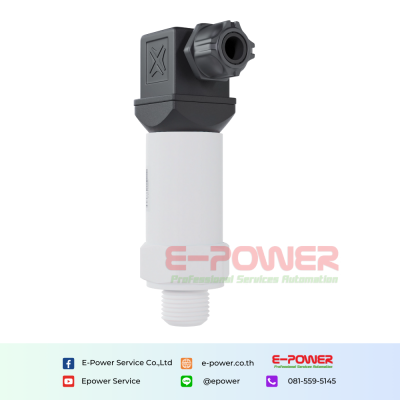

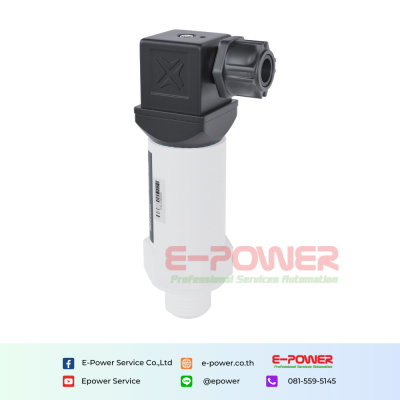

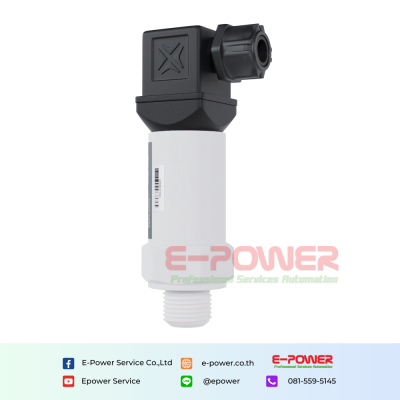

SUP-P302-B Anti-corrosion pressure transmitter

Our Anti-corrosion pressure transmitter is a specialized type of Water Pressure Sensor that is designed to resist corrosion and provide accurate pressure readings in harsh environments.

āļˆāļģāļ™āļ§āļ™
Product description

Characteristics

  • Pressure type: Gauge pressure, absolute pressure, sealed pressure
  • Accuracy: 0.5%
  • Measuring range: -0.1MPa...0~10kPa...2MPa

Specification

Product Level transmitter
ModelSUP-P302-B
Pressure typeGauge pressure, absolute pressure, sealed pressure
Accuracy0.5%
Measuring range-0.-0.1 MPa... 0~10kPa2MPa
Output and power supply range(4~20) mA output (10~32) V
(0~10) V output (12~32) V
(0~5) V, (1~5) V, RS485 output (8~32) V
(4~20) mA output with LCD 4-digit display head (17~32) V
RS485 output with 8-segment digital tube 4-digit display head (5~28) V
Compensation temperature(0~70)°C
Working temperature(-20~85)°C
Medium temperature(-20~85)°C
Storage temperature(-40~85)°C
Temperature driftÂą3%FS
Transmission output(4~20) mA
Overload pressure200%FS
Long-term stabilityÂą0.5%FS/year
Response timeCurrent, voltage output pressure 10ms (up to 90% FS)
RS485 output type pressure 100ms (up to 90% FS)
Insulation resistance20MÎĐ/250VDC
Dielectric strength50Hz, 500VAC
Ingress protectionIP65
Load resistance(4~20) mA output: load resistance (U-10V)/0.02A, U is the supply voltage
(4~20) mA output with display: load resistance (U-14V)/0.02A, U is the supply voltage
Voltage output: load resistance 5kÎĐ
