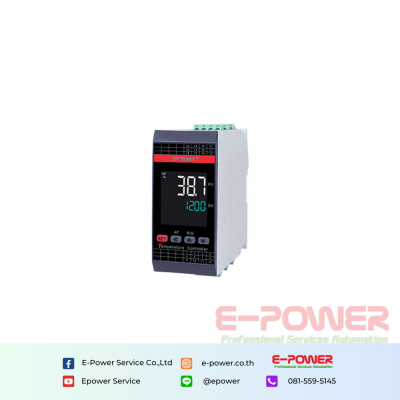

Model Illustration
General model description
Main Technical Parameters
| Sampling speed | 2 times per second |
| Relay capacity | AC 250V /3A Life of rated load>100000 times |
| Power supply | AC/DC 100 ï― 240V ïž85-265VïžïžDC 24V |
| Total consumption | < 10VA |
| SSR output | DC 24V impulse level, load<30mA |
| Current output | DC 4~20mA load<500ÎĐ |
| Communication port | RS485 port Modbus-RTU protocol |
| Insulation impedance | Input, output, power to housingïž20MÎĐ |
| ESD | IEC/EN61000-4-2 Contact Âą4KV /Air Âą8KV perf.Criteria B |
| Pulse traip anti-interference | IEC/EN61000-4-4 Âą2KV perf.Criteria B |
| Surge immunity | IEC/EN61000-4-5 Âą2KV perf.Criteria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ï― 70% perf.Criteria B |
| Isolation withstand voltage | Signal input & output & power 3000VAC 1min, <60V Low voltage circuit between DC500V,1min |
| Power-off protection | 10 years,times of writing:1 million times |
| Panel protection leve | IP65(IEC60529) |
| Safety standard | IEC61010-1 Overvoltage category , pollution level 2, level (Enhanced insulation) |
| Shell material | PC/ABS (flame class UL94V-0) |
| Panel material | PC |
| Weight | About 300g |
| Ambient environment | t Indoor use, temperature: 0~50, no condensation, humidity:ïž85%RH, altitude<2000m |
Measurement signal parameter table
| Input type | Measurement Range | Resolution | Accuracy(23Âą0.5) | Input resistanceAuxiliary current | CommincationCod | |
| °C | °F | |||||
| K1 | -50 ï― 1200 | -60 ï― 2200 | 1 | 0.5%F.SÂą3digits | >1MÎĐ | 0 |
| K2 | -50.0 ï― 999.9 | -60.0 ï― 999.9 | 0.2 | 0.5%F.SÂą1 | >1MÎĐ | 16 |
| J1 | 0 ï― 1200 | 0 ï― 2200 | 1 | 0.5%F.SÂą3digits | >1MÎĐ | 1 |
| J2 | 0.0 ï― 999.9 | 0 ï― 999.9 | 0.2 | 0.5%F.SÂą1 | >1MÎĐ | 17 |
| E1 | 0 ï― 850 | 0 ï― 1500 | 1 | 0.5%F.SÂą3digits | >1MÎĐ | 2 |
| E2 | 0.0 ï― 850.0 | 0 ï― 999.9 | 0.3 | 0.5%F.SÂą1 | >1MÎĐ | 18 |
| T1 | -50 ï― 400 | -60 ï― 750 | 1 | 0.5%F.SÂą3 | >1MÎĐ | 3 |
| T2 | -50.0 ï― 400.0 | -60.0 ï― 750.0 | 0.4 | 0.5%F.SÂą3 | >1MÎĐ | 19 |
| B | 250 ï― 1800 | 250 ï― 3200 | 1 | 1%F.SÂą2 | >1MÎĐ | 4 |
| R | -10 ï― 1700 | -10 ï― 3000 | 1 | 1%F.SÂą2 | >1MÎĐ | 5 |
| S | -10 ï― 1600 | -10 ï― 2900 | 1 | 1%F.SÂą2 | >1MÎĐ | 6 |
| N1 | -50 ï― 1200 | -60 ï― 2200 | 1 | 0.5%F.SÂą1 | >1MÎĐ | 7 |
| N2 | -50.0 ï― 999.9 | -60 ï― 999.9 | 0.2 | 0.5%F.SÂą1 | >1MÎĐ | 20 |
| PT100-1 | -200.0 ï― 600.0 | -200.0 ï― 999.9 | 0.2 | 0.5%F.SÂą0.3 | 0.33mA | 8 |
| PT100-2 | -200 ï― 600 | -300 ï― 1100 | 0.1 | 0.5%F.SÂą3digits | 0.33mA | 21 |
| JPT100-1 | -200.0 ï― 500.0 | -200.0 ï― 900.0 | 0.2 | 0.5%F.SÂą0.3 | 0.33mA | 9 |
| JPT100-2 | -200 ï― 500 | -300 ï― 900 | 1 | 0.5%F.SÂą3digits | 0.33mA | 22 |
| CU50-1 | -50.0 ï― 150.0 | -60.0 ï― 300.0 | 0.2 | 0.5%F.SÂą3 | 0.33mA | 10 |
| CU50-2 | -50 ï― 150 | -60 ï― 300 | 1 | 0.5%F.SÂą3 | 0.33mA | 23 |
| CU100-1 | -50.0 ï― 150.0 | -60.0 ï― 300.0 | 0.2 | 0.5%F.SÂą1 | 0.33mA | 11 |
| CU100-2 | -50 ï― 150 | -60 ï― 300 | 1 | 0.5%F.SÂą3digits | 0.33mA | 24 |
| 0 ï― 50mV | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | 0.33mA | 12 | |
| 0 ï― 400ÎĐ | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | 0.33mA | 13 | |
| * 4 ï― 20mA | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | <50ÎĐ | 14 | |
| * 0 ï― 10V | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | >1MÎĐ | 15 | |
