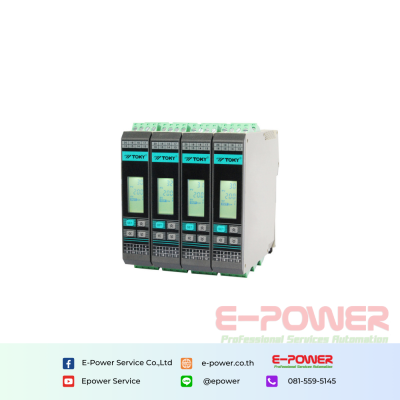

Features
- Optional input signal types and models
- With many functions of measured display,control output,alarm output,analog output,RS485 communication,etc.
- Optional many types of PID arithmetic and with auto-tuning function.
- Using for industrial machinery, machine tools,measuring instruments.
- Economical and easy operation
Model
Ordering Information
| Model | Control output | Alarm | Analog 4ï―20mA | RS485 |
| GTE2-IRC18W | Relay / 4ï―20mA | 2 | Yes | Yes |
| GTE2-RC18W | SSR | 2 | Yes | Yes |
Specifications
Electrical parameters:
| Sample rate | 2 SPS |
| Relay capacity | AC 250V /3A Life of rated load>100,000 times |
| Power supply | AC/DC 100 ï― 240V ïž85-265Vïž |
| Power consumption | < 6VA |
| Environment | Temperature of indoorïž0 ï― 50 no condensation, Humidityïžïž85%RHïž altitude<2000m |
| Storage enenvironment | -10 ï― 60, no condensation |
| SSR output | DC 24V pulse level, load<30mA |
| Current output | DC 4 ï― 20mA load<500ÎĐïž temperature drift 250PPM |
| Communication port | RS485 port, Modbus-RTU procotol, max input 30 uints |
| Insulation impedance | Input, output, power cabinetïž20MÎĐ |
| ESD | IEC/EN61000-4-2 Contact Âą4KV /Air Âą8KV perf.CriGTEria B |
| Pulse traip anti-interference | IEC/EN61000-4-4 Âą2KV perf.CriGTEria B |
| Surge immunity | IEC/EN61000-4-5 Âą2KV perf.CriGTEria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ï― 70% perf.CriGTEria B |
| Dielectric strength | Signal input & output & power 1500VAC 1min, below 60V Low voltage circuit between DC500V, 1min |
| Total weight | About 400g |
| Shell material | PA66-FR(Flame Class UL94V-0) |
| Panel material | PVC film and PEM silicone key |
| Power-off data protection | 10 years , times of writing: 1 million times |
| Safety Standard | IEC61010-1 Overvoltage category ïžpollution level 2ïž level ïžEnhanced insulation) |
Measured signal specificationsïž
| Input type | Measuring range | Resolution | Accuracy | Input impedance/ auxiliary current | Communication parameter code |
| K | -50 ï― 1200 | 1°C | 0.5%F.SÂą3digits | ïž500kÎĐ | 0 |
| J | 0 ï― 1200 | 1°C | 0.5%F.SÂą3digits | ïž500kÎĐ | 1 |
| E | 0 ï― 850 | 1°C | 0.5%F.SÂą3digits | ïž500kÎĐ | 2 |
| T | -50 ï― 400 | 1°C | 0.5%F.SÂą2°C | ïž500kÎĐ | 3 |
| S | -10 ï― 1600 | 1°C | 0.5%F.SÂą1°C | ïž500kÎĐ | 4 |
| PT100 | -200 ï― 600 | 0.2°C | 0.5%F.SÂą3digits | 0.2mA | 5 |
| CU50 | -50 ï― 150 | 0.2°C | 0.5%F.SÂą3°C | 0.2mA | 6 |
| CU100 | -50 ï― 150 | 0.2°C | 0.5%F.SÂą1°C | 0.2mA | 7 |
| 0 ï― 50mV | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | ïž500kÎĐ | 8 |
| 0 ï― 400ÎĐ | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | 0.2mA | 9 |
| * 4 ï― 20mA | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | 100ÎĐ | 10 |
| * 0 ï― 10V | -1999 ï― 9999 | 12bit | 0.5%F.SÂą3digits | >1MÎĐ | 11 |
* Please note when you choose the model
GTE - B Version
Ordering Information
| Model | Control Output Function | Alarm | Analog Output 4~20mA | RS485 |
| GTE2-IMC10 | SSR, relay output / 4~20mA | 2 | Yes | No |
| GTE2-MC10 | SSR, relay output | 2 | No | No |
| GTE2-IMC18 | SSR, relay output / 4~20mA | 2 | Yes | Yes |
| GTE2-MC18 | SSR, relay output | 2 | No | Yes |
Specifications
Electrical parameters :
| Sample rate | 2 times per second |
| Relay capacity | AC 250V/1A lifespan of rated load > 100,000 times (Resistive load) |
| Power supply | AC/DC 100 ~ 240V (85-265V) or AC/DC 24V |
| Power consumption | < 6VA |
| Environment | Temperature of indoor: 0 ~ 50°C no condensation, Humidity: <85%RH, altitude<2000m |
| Storage environment | -10 ~ 60°C, no condensation |
| SSR output | DC 24V pulse level, load<30mA |
| Current output | DC 4~20mA load<5000, temperature drift 250PPM |
| Communication port | RS485 port, Modbus-RTU protocol, max input 30 units |
| Insulation impedance | Input, output, power cabinet > 20 MÎĐ |
| ESD | IEC/EN61000-4-2 Contact Âą4KV/Air Âą8KV performance Criteria B |
| Pulse train anti-interference | IEC/EN61000-4-4 Âą2KV performance Criteria B |
| Surge immunity | IEC/EN61000-4-5 Âą2KV performance Criteria B |
| Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ~70% performance Criteria B |
| Dielectric strength | Signal input & output & power 1500VAC 1min, below 60V Low voltage circuit between DC500V, 1min |
| Total weight | About 400g |
| Shell material | PA66-FR (Flame Class UL94V-0) |
| Panel material | PVC film and PEM silicone key |
| Power-off data protection | 10 years, times of writing: 1 million times |
| Safety Standard | IEC61010-1 Overvoltage category II, pollution level 2, level II (Enhanced insulation) |
Measured signal specifications:
| Input Type | Measuring Range | Resolution | Accuracy | Input Impedance / Auxiliary Parameter | Communication parameter code |
| K | -50 ~ 1200 | 1°C | 0.5% F.S Âą 3 digits | > 500 ÎÎĐ | 0 |
| J | 0 ~ 1200 | 1°C | 0.5% F.S Âą 3 digits | > 500 ÎÎĐ | 1 |
| E | 0 ~ 850 | 1°C | 0.5% F.S Âą 3 digits | > 500 ÎÎĐ | 2 |
| T | -50 ~ 400 | 1°C | 0.5% F.S Âą 3°C | > 500 ÎÎĐ | 3 |
| B | 250 ~ 1800 | 1°C | 1% F.S Âą 2°C | > 500 ÎÎĐ | 4 |
| R | -10 ~ 1700 | 1°C | 1% F.S Âą 2°C | > 500 ÎÎĐ | 5 |
| S | -10 ~ 1600 | 1°C | 1% F.S Âą 2°C | > 500 ÎÎĐ | 6 |
| N | -50 ~ 1200 | 1°C | 0.5% F.S Âą 1°C | > 500 ÎÎĐ | 7 |
| PT100 | -200 ~ 600 | 0.2°C | 0.5% F.S ¹ 0.3°C | 0.2 mA | 8 |
| JPT100 | -200 ~ 500 | 0.2°C | 0.5% F.S ¹ 0.3°C | 0.2 mA | 9 |
| CU50 | -50 ~ 150 | 0.2°C | 0.5% F.S ¹ 3°C | 0.2 mA | 10 |
| CU100 | -50 ~ 150 | 0.2°C | 0.5% F.S ¹ 1°C | 0.2 mA | 11 |
| 0 ~ 50mV | -1999 ~ 9999 | 12 bit | 0.5% F.S Âą 3 digits | > 500 ÎÎĐ | 12 |
| 0 ~ 4000 | -1999 ~ 9999 | 12 bit | 0.5% F.S Âą 3 digits | 0.2 mA | 13 |
| *4 ~ 20mA | -1999 ~ 9999 | 12 bit | 0.5% F.S Âą 3 digits | 100 ÎĐ | 14 |
| *0 ~ 10V | -1999 ~ 9999 | 12 bit | 0.5% F.S Âą 3 digits | > 1 ÎÎĐ | 15 |
* Please note when you choose the model
