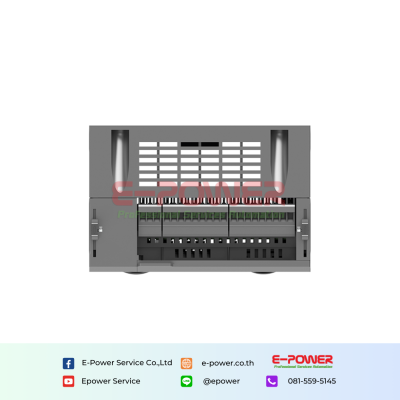

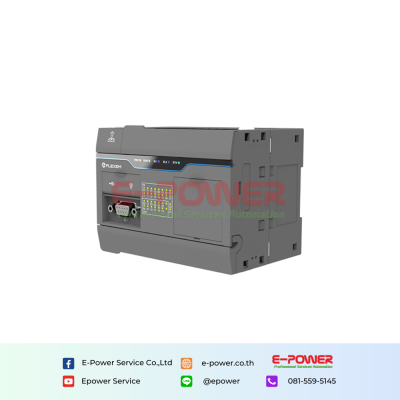

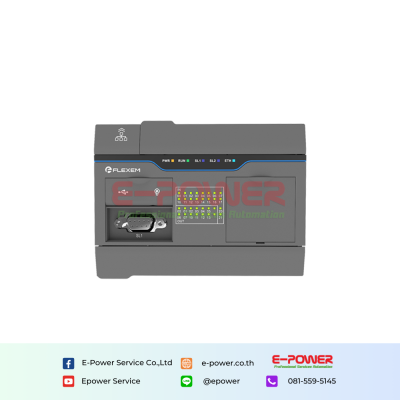

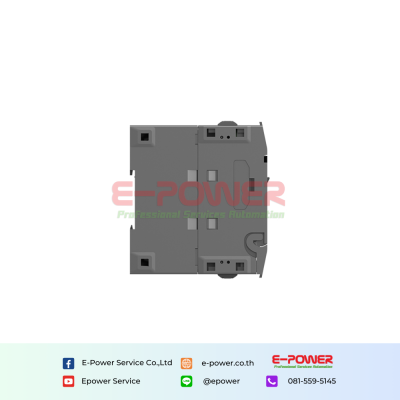

Flexem FC5-20MR-AC
Input Points: 12
Output Points: 8
High-speed Pulse Input: N/A
High-speed Pulse Output: N/A
Flexem FC5-20MR-AC controller, 12 inputs, 8 relay outputs, 1 Ethernet port, IEC 61131-3 programming, supports Ladder Diagram and ST programming languages, graphical configuration interface, PLC download without power supply, expandable with IoT expansion modules, providing a more economical PLC connectivity solution.
āļāļģāļāļ§āļ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Specs
Hardware
| Input Points | 12 |
| Output Points | 8 |
| High-speed Pulse Input | N/A |
| High-speed Pulse Output | N/A |
| I/O Expansion Modules | Maximum of 3 |
| Expansion Board | 1 |
| USB Type-C | Program download and upload, online monitoring, firmware upgrade |
| RS232/RS485 | 2 |
| Ethernet Port | 1* RJ45 10/100M self-adaptive |
| RTC | Built-in, supported by internal battery, with an error of Âą3 seconds per day; can maintain operation for up to a year after power interruption |
| Wiring Structure | Detachable terminal block |
Electrical
| Rated Power | < 30W |
| Rated Voltage | AC 85V~264V, 50Hz, with overvoltage protection |
| DC24V Output | 24V DC 500mA |
| Power Interruption Tolerance | < 100ms |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Environmental Humidity | 5~95%RH (non-condensing) |
| Cooling Method | Natural air cooling |
Mechanical
| Enclosure Material | Engineering plastic |
| Dimensions | 125mmÃ90mmÃ83mm |
| Weight | About 473g |
| Programming Architecture | IEC61131-3 |
| Programming Software | FStudio-Unified |
Port
PORT1/PORT2
| Pin1 | Port1 RS485-(B) |
| Pin2 | Port1 RS232 Rx |
| Pin3 | Port1 RS232 Tx |
| Pin4 | Port2 RS485-(B) |
| Pin5 | GND |
| Pin6 | Port1 RS485+(A) |
| Pin7 | Port2 RS232 Rx |
| Pin8 | Port2 RS232 Tx |
| Pin9 | Port2 RS485+(A) |
Size
