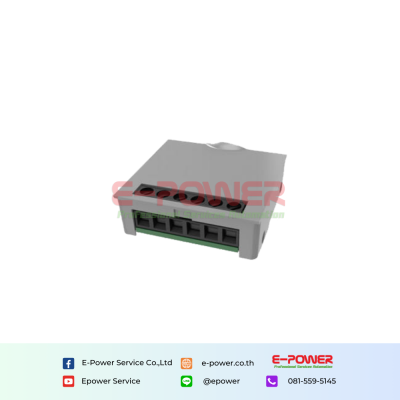

Flexem F5-BA0200B
Input: 2
Output: N/A
Installation: CPU frontal expasion board slot
Dimensions: 38mmx40mmx18mm
Flexem F5 series PLC, expansion board, 2 inputs.
āļāļģāļāļ§āļ
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Specs
Hardware
| Input | 2 |
| Output | N/A |
| Resolution | 12-bit |
| Input/Output Signal Range | Voltage: 0-10V, current: 0-20mA / 4-20mA |
| Full-scale Value Range | Customizable (0~4096) |
| Conversion Precision | Âą1% (full-scale range) |
| Maximum Allowable Input Signal | Voltage: 30V, current: 30mA |
| Input Impedance | Voltage > 100k ohms, current < 250ohms Âą5% |
| Allowable Output Load Range | N/A |
| Rated Voltage | 5VDC -15%/+20%, maximum of 3.2W. Provided internally in the main unit, no external input required |
| Wiring Structure | Non-detachable terminal block |
Environmental
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~70°C |
| Environmental Humidity | 5~95%RH (non-condensing) |
| Cooling Method | Natural air cooling |
Mechanical
| Enclosure Material | Engineering plastic |
| Installation | CPU frontal expasion board slot |
| Dimensions | 38mmx40mmx18mm |
Size
