āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē

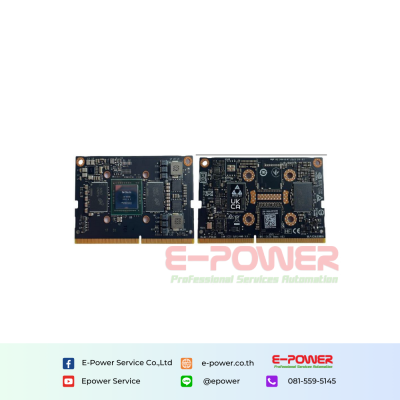

| Model | Jetson TX2 NX |
| PN. | 900-13636-0010-000 |
| AI Perf. | Up to 1.33 TFLOPS |
| GPU | Pascal GPU, 256 NVIDIAÂŪ CUDAÂŪ cores, End-to-end lossless compression | Tile Caching | OpenGLÂŪ 4.6 | OpenGL ES 3.2 | Vulkan 1.1 | CUDA | Maximum Operating Frequency: 1.3 GHz |
| CPU | Denver 2 CPU and Cortex A57 ARMv8 (64-bit) heterogeneous multi-processing (HMP) CPU architecture | Two CPU clusters (six processor cores) connected by a high-performance coherent interconnect fabric. NVIDIA Denver 2 (Dual-Core) Processor: L1 Cache: 128KB L1 instruction cache (I-cache) per core; 64KB L1 data cache (Dcache) per core | L2 Unified Cache: 2MB ARMÂŪ CortexÂŪ A57 MPCore (Quad-Core) Processor: L1 Cache: 48KB L1 instruction cache (I-cache) per core; 32KB L1 data cache (D-cache) per core | L2 Unified Cache: 2MB | Cortex- A57 maximum frequency: 2 GHz |
| Display Controller | Two multi-mode eDP 1.4 | DP 1.2a | HDMI 2.0a/b | 1 x2 DSI (1.5Gbps/lane) Maximum Resolution (eDP/DP/HDMI): (up to) 3840x2160 at 60 Hz (up to 36 bpp) |
| Encode | Video Encode 1x 4K60 |
| Decode | Video Decode 2x 4K60 |
| Memory | 4GB | 128-bit LPDDR4 DRAM Secure External Memory Access Using TrustZoneÂŪ Technology | System MMU Maximum Operating Frequency: 1600 MHz | Maximum Memory BW 51.2GB/s |
| Storage | Storage 16GB eMMC 5.1 Flash Storage | Bus Width: 8-bit Maximum Bus Frequency: 200 MHz (HS400) |
| Network | 10/100/1000 BASE-T |
| CSI Camera | 12 lanes (3x4 or 5x2) | MIPI CSI-2 D-PHY 1.2 (2.5Gb/s per lane, total up to 30Gbps) |
| Peripheral Interfaces | xHCI host controller with integrated PHY (up to) 1x USB 3.0 (Gen1), 3x USB 2.0 | PCIe 1 x2 + 1 x1 (Gen2), Root Port Only | SD/MMC controller (supporting eMMC 5.1, SD 4.0, SDHOST 4.0 and SDIO 3.0) | 3x UART | 2x SPI | 4x I2C | 1x CAN | 4x I2S | GPIOs | 1x SD Card/SDIO |
| Power IN | 5V |
| MAX P | 15W |
| Temp. O | Temperature Range (Tj): -25°C - 90°C |
| Size | 69.6mmx45mm |
| Connector | 260 PIN SO-DIMM |
