รายละเอียดสินค้า

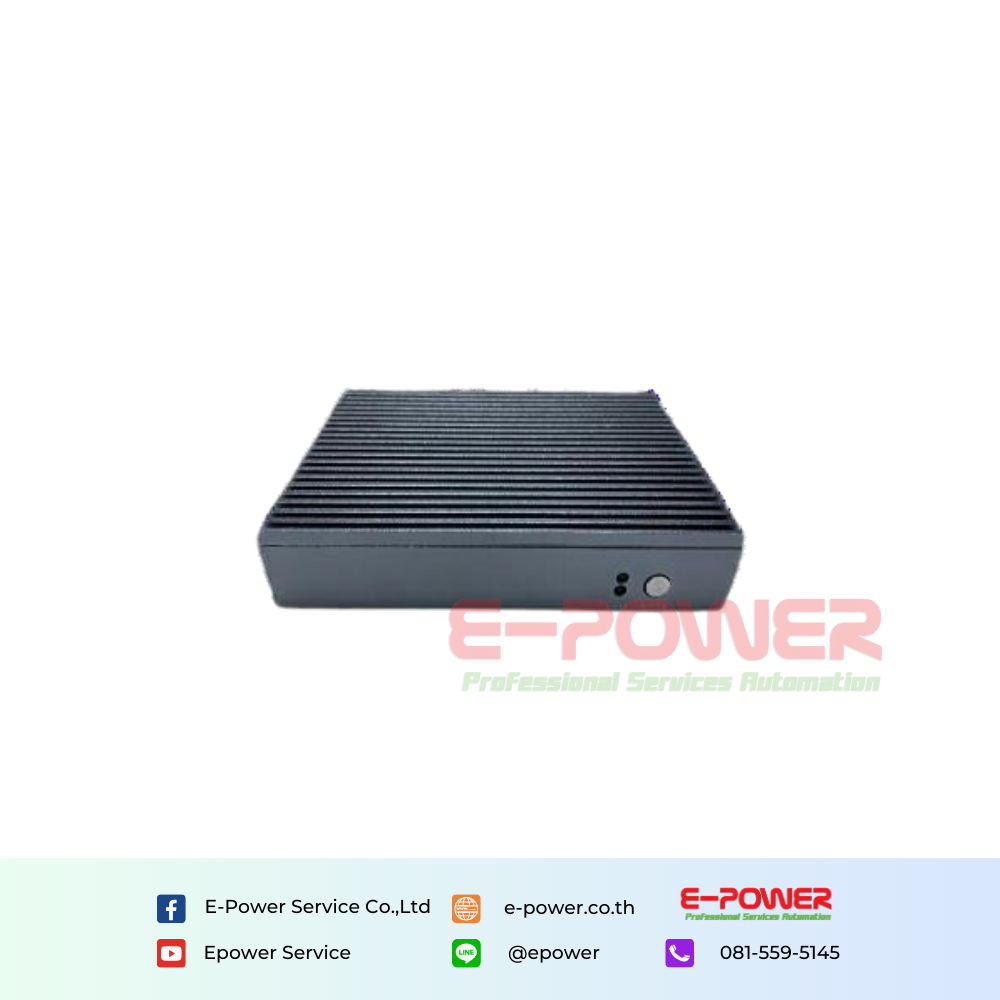

| Model | TABNNA01 series | TABNNA02E series | TABNNA03 series | TABNNA04 series |
| Module | Jetson NANO | |||
| GPU | Maxwell, 128 CUDA cores, 921MHz, 0.512TFLOPS(FP16) | |||
| CPU | 4-core Cortex-A57 CPU, 1.43GHz | |||
| Encode | H.265 (Main, Main 10): 2160p 60fps | 1080p 240fpsH.264 (BP/MP/HP/Stereo SEI half-res): 2160p 60fps | 1080p 240fpsH.264 (MVC Stereo per view): 2160p 30fps | 1080p 120fpsVP9 (Profile 0, 8-bit): 2160p 60fps | 1080p 240fpsVP8: 2160p 60fps | 1080p 240fpsVC-1 (Simple, Main, Advanced): 1080p 120fps | 1080i 240fpsMPEG-2 (Main): 2160p 60fps | 1080p 240fps | 1080i 240fpsJPEG (Decode and Encode): 600 MP/s | |||
| Decode | H.265:2160p 30fps | 1080p 120fpsH.264 (BP/MP/HP): 2160p 30fps | 1080p 120fpsH.264 (MVC Stereo per view): 1440p 30fps | 1080p 60fpsVP8: 2160p 30fps | 1080p 120fpsJPEG (Decode and Encode): 600 MP/s | |||
| Memory | 4GB 4x16Bit LPDDR4, Bandwidth 25.6GB/S, 1600MHz | |||
| Storage | 16GB eMMC + TF card | |||
| Network | 2xGigaLAN(RJ45) | |||
| NA | 1x4G(4G module), 1xWIFI(optional) | 1x4G/5G(4G/5G module), 1xWIFI(optional) | 1xWIFI(optional) | |
| Extend | NA | 1xSIM card slot 1xMiniPCIE(USB2.0 single) | 1xMiniPCIE(USB3.0 single) | NA |
| IO | 1xUSB2.0, 1xOTG, 1xRS485,1xUSB3.0, 4xGPIOs | 1xUSB2.0, 1xOTG, 1xRS485 | ||
| 2xUSB3.0, 8xGPIOs, 1xRS232 | 1xUSB3.0, 4xGPIOs | |||
| Display | 1xHDMI2.0(TypeA) | |||
| Power IN | DC_IN 12V/40W, LAN PD power supply(optional) | |||
| LED | 1xRed LED(Power indication), 1xGreen LED(Controlled by GPIO) | 1xGreen LED(Power indication) 2xGreen LED(Controlled by GPIO) | 1xRed LED(Power indication) 1xGreen LED(Controlled by GPIO) | |
| MAX P | 12W | |||
| Material | Aluminium | |||
| Radiator | Fin, without fan | |||
| Temp. O | -30°C -50°C | -30°C -75°C | ||
| Fixed | Table top placement or bracket installation | Table top placement | Table top placement or bracket installation | |
| Colour | Iron grey | Black | Iron grey | |
| Weight | 650g(1300g with packaging) | 1600g(2200g with packaging) | 1300g(1900g with packaging) | |
| Size | 160x99x31(mm) | 160x99x45(mm) | 200x120x66(mm) | 200x99x55(mm) |
| Package | 290x250x90(mm) | 310x260x110(mm) | 290x250x90(mm) | |
| OS | Ubuntu 18.04(NVIDIA customized system JP4.6) | Ubuntu 18.04(NVIDIA customized system JP4.6) | ||
| Advantage | Small size, light weight | Scalable, Small size, light weight | High temperature operation Strong scalability, 5G | High temperature operation |
| Weakness | Working temperature is average | Working temperature is average | Larger size, heavy | Larger size, heavy |
