TD215A 21.5 inch Capacitive Touch Panel PC


āļˆāļģāļ™āļ§āļ™
āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Technical Parameters

System

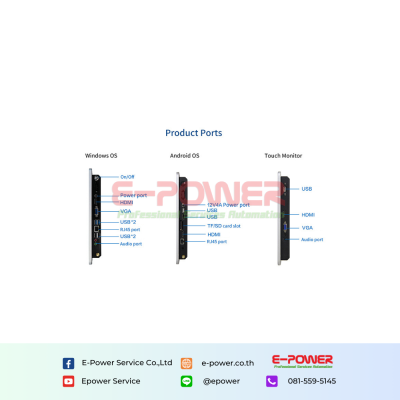

Output (Android PC)HDMI/VGA output inside
InputTouchscreen monitorVGA、HDMI DVI input
TouchPCAP,10 points touch
DisplayHDMI 1080
Video decoding1080P Full HDMPEG、H.264 etcv

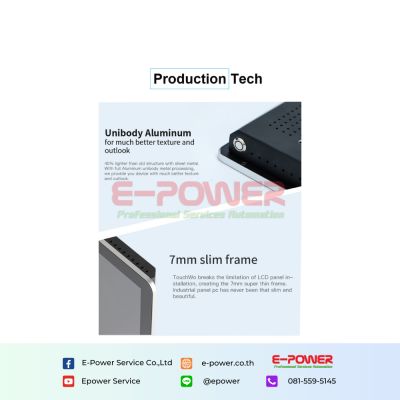

Designalloy aluminum frame,metal sheet design, round corner
System IntegrationPC,Display ,touch, button switch



LCD Panel

Screen TypeA-Si,TFT-LCD, back-light, A-type
Size21.5 inch (16:9)
Display area477.6W* 269.1Hmm
Resolution1920*1080
Brightnessis greater than or equal to 250 cd/ãŽĄ
Contrast ratiois greater than or equal to 3000ïžš1
Response time13/5(Typ.)(Tr/Td)ms
Number of colors16.7M , 74% NTSC LVDS 30 Pins
Refresh rate60Hz
Viewing angleangle 89/89/89/89 (Typ.) CR10) left/right/up/down
Life time30000 hours

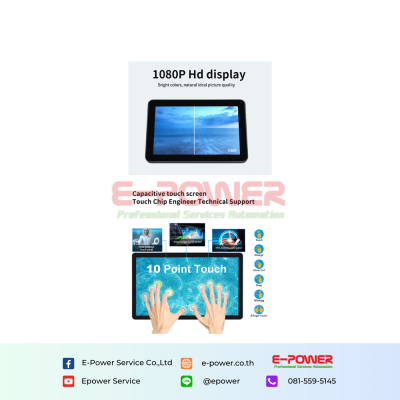

Touch Panel

Touch technologyCapacitive touch screen
Response time<5ms
Touch points10 points standard, zoom in/ zoom out options
Touch effective recognition1.5output methodCoordinate output
Scanning Frequency200HzScanning accuracy4096×4096
CommunicationsUSB 2.0,3.0Theoretical Clicks50 Millions
FirmwareUpgraded by
USB
DriverNO
Working Current/Voltage180Ma/DC+5VÂą5%
Surface HardnessChemically tempered, Mohs class 7 explosion-proof glass
OSWin 7/ Win 8/Win 10/CE/Mac/Android/Linux /XP



Power supply parameters

Input Power110240V AC 50/60Hz
Output powerDC 12V 5A
Consumption for Touch windowïđĪ60 W
Consumption for Touch monitorïđĪ20W
Consumption for Touch AndroidïđĪ36W
Standby power consumptionïđĪ0.5WSpeaker4ÎĐ3w



Working environment

Operating temperature0°C-50°C
Working humidity
Storage temperature
Storage humidity
Altitude
