CWT-THxxS Series RS485 temperature humidity sensor

CWT-THxxS Series RS485 temperature humidity sensor

หมวดหมู่ : CWT Sensor , Temperature Humidity Sensors

แบรนด์ :CWT

รายละเอียดสินค้า

Basic feature

Power: DC5V~DC24V
Temperature Measuring Range : -30°C~80°C
Humidity Measuring Range: 0~100%RH
Measuring Precision:
Temperature:±0.5°C (resolution: 0.1°C)
Humidity:±5%rh (resolution: 0.1 rh)
Output: RS485 (Protocol MODBUS RTU)
Consumption <0.1W
RS485 Communication distance: up to 800m
Cable length: 0.8m

Model	Specification	Application

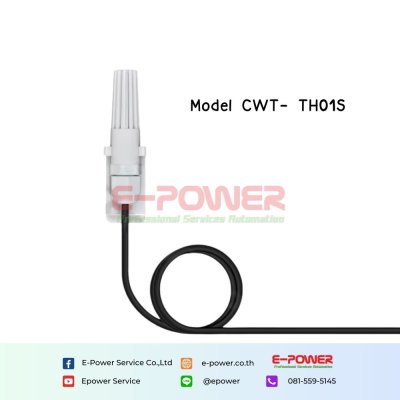

CWT-TH01S	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP30	Not waterproof, widely used in communication rooms, intelligent buildings, workshops, warehouse, medicine warehouse, library, museum, laboratory, office, ventilation duct etc.

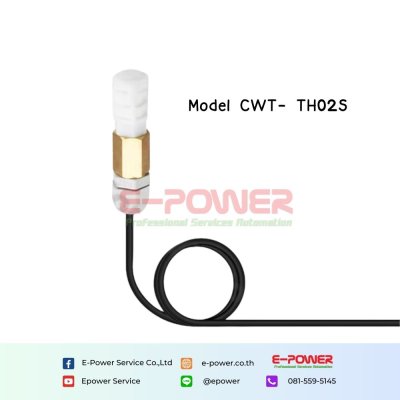

CWT-TH02S	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP44	Not waterproof, widely used in communication rooms, intelligent buildings, workshops, warehouse, medicine warehouse, library, museum, laboratory, office, ventilation duct etc.

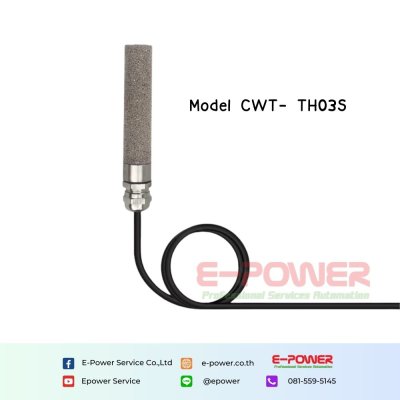

CWT-TH03S	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP44	Metal probe, with dustproof and waterproof capacity, can be used in excessive dust environment

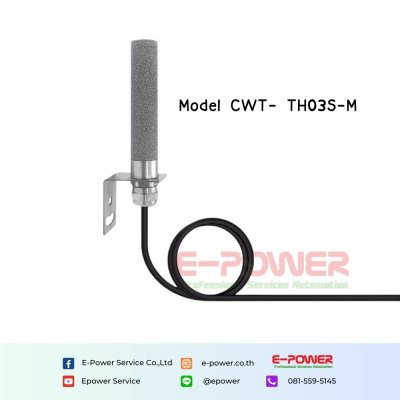

CWT-TH03S-M	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP44 With mounting bracket	Metal probe, with dustproof and waterproof capacity, can be used in excessive dust environment

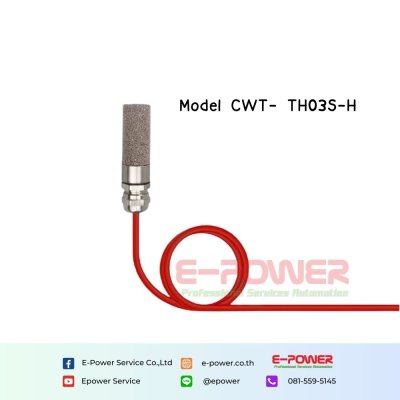

CWT-TH03S-H	Temperature Measuring Range :-40°C ~ 120°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP44	Wide range temperature measurement, metal probe, with dustproof and waterproof capacity, can be used in excessive dust environment

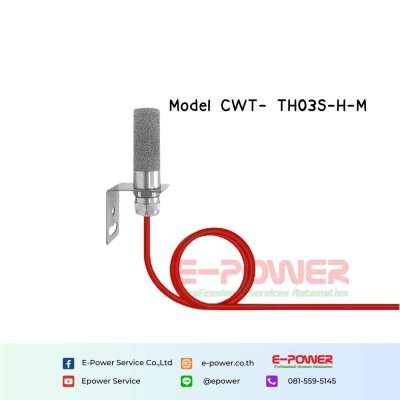

CWT-TH03S-H-M	Temperature Measuring Range :-40°C ~ 120°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP44 With mounting bracket	Wide range temperature measurement, metal probe, with dustproof and waterproof capacity, can be used in excessive dust environment

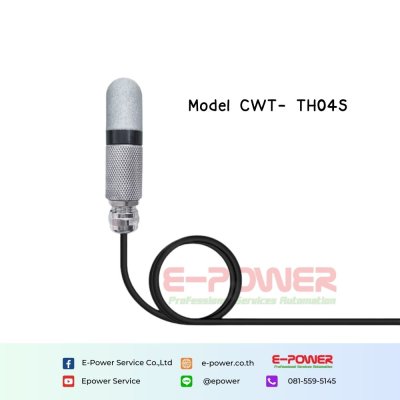

CWT-TH04S	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP67	IP67 dustproof and waterproof capacity, can be used in severe environment

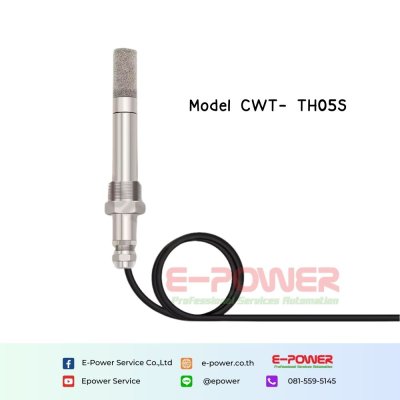

CWT-TH05S	Temperature Measuring Range :-30°C ~ 80°C Humidity Measuring Range : 0 ~ 100% RH Protection : IP65	BSP G1/2in Thread Probe, measure air temperature humidity in pipe (can not measure water)

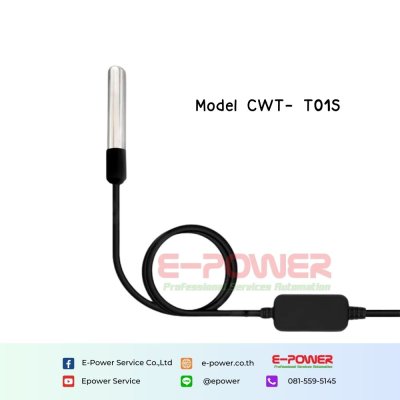

CWT-T01S	Temperature Measuring Range :-30°C ~ 80°C Protection : IP65	Measure air or water temperature

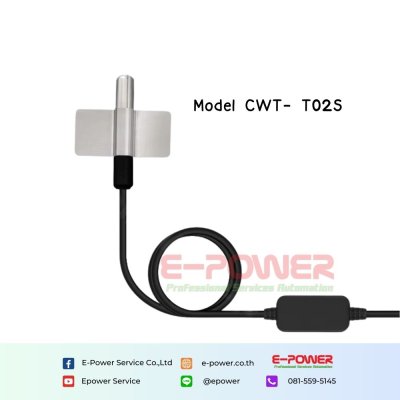

CWT-T02S	Temperature Measuring Range :-30°C ~ 80°C Protection : IP65	Measure surface temperature of object

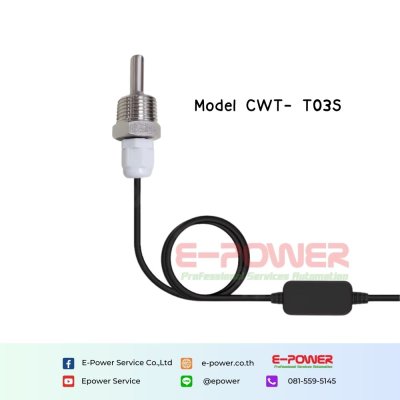

CWT-T03S	Temperature Measuring Range :-30°C ~ 80°C Protection : IP65	BSP G1/2in Thread Probe, measure coorosive liquid temperature in pipe

Manual: CWT-THXXS TH sensor manual

Config Tool Instruction: CWT-THXXS config tool manual

CWT-THxxS Series temperature humidity sensor RS485 CWT-TH01S CWT-TH02S CWT-TH03S CWT-TH03S-M CWT-TH03S-H CWT-TH03S-H-M CWT-TH04S CWT-TH05S CWT-T01S CWT-T02S CWT-T03S
