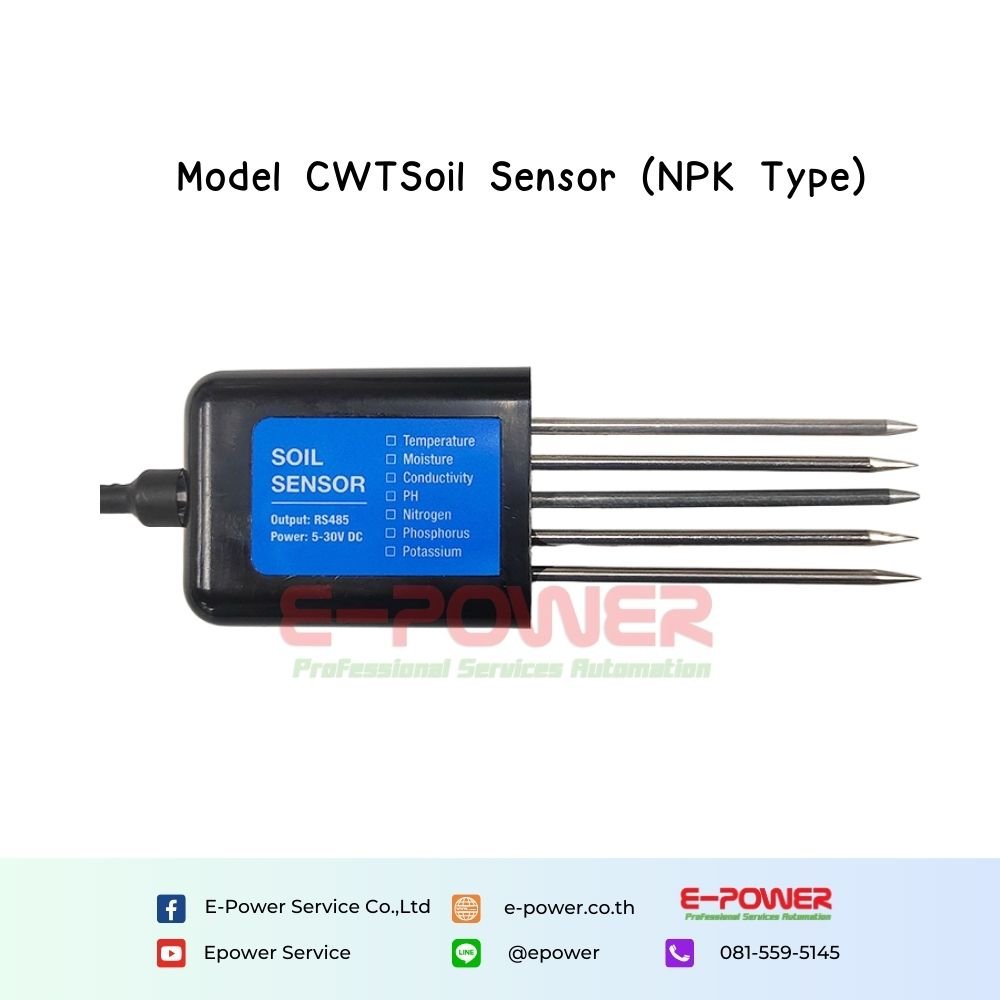

CWT Soil sensor (NPK type)

Soil parameters measuring

Temperature : Measuring range: -40°C-80°C
                         Accuracy: ±0.5°C (25°C)
                         Long-term stability: 0.1%°C/y
                         Response time: 15s

Humidity : Measuring range: 0-100%RH
                   Accuracy: 3% within 0-50%, 5% within 50-100%
                   Long-term stability: 1%RH/y
                   Response time: 4s

Conductivity (EC) : Measuring range: 0-20000us/cm
             Accuracy: 0-10000 us/cm range is ±3%; 10000-20000 us/cm range is ±5%
             Long-term stability: 1%uS/cm
             Response time: 1s

PH : Measuring range: 3-9 PH
         Accuracy: ±0.3PH
         Long-term stability: 5%/year
         Response time: 10S

Nitrogen Phosphorus Potassium: Measuring range: 1-2999 mg/kg(mg/L)
                                                             Resolution:1 mg/kg(mg/L)
                                                             Response time: <1S

Reminder
The measurement of NPK adopts the general rapid detection method, so there are certain errors, Use with caution for planting reference.
However, the sensor supports the function of writing NPK data. You can use standard instruments to measure NPK then write in to provide data for monitoring system.

Specification

Power supply : DC4.5-30V
Max Power consumption : 0.5W@24V DC
Protection class : IP68, long-term immersion in water use
Cable length : 2M
Operating environment : -40°C-80°C
Overall dimensions : 45 * 15 * 123mm

Manual: NPK type (5Pin probe) manual_V1.4

Config Tool Instruction: Config tool instruction (NPK type_5pin probe)_V1.3
