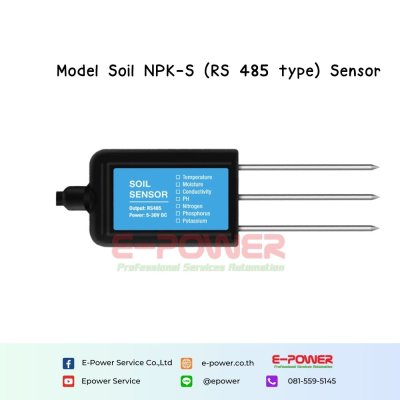

Soil NPK-S (RS485 type) sensor

Soil parameters measuring

Nitrogen Phosphorus Potassium : Measuring range: 1-1999 mg/kg(mg/L)
                                                             Resolution:1 mg/kg(mg/L)
                                                             Response time: <1S

Reminder
The measurement of NPK adopts the general rapid detection method, so there are certain errors, Use with caution for planting reference.
However, the sensor supports the function of writing NPK data. You can use standard instruments to measure NPK then write in to provide data for monitoring system.

Specification

Power supply : DC4.5-30V
Max Power consumption : 0.5W@24V DC
Protection class : IP68, long-term immersion in water use
Cable length : 2M
Operating environment : -40°C-80°C
Overall dimensions : 45 * 15 * 123mm

Manual: NPK-S (3Pin probe) manual_V1.4

Config Tool Instruction: Config tool instruction (NPK-S_3pin probe)_V1.3
