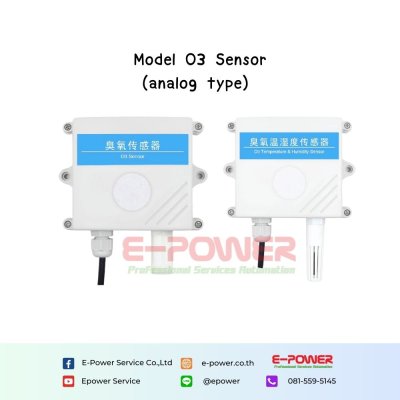

O3 sensor (analog type)

Basic parameters

Power supply : DC10-30V (0~10v type need DC 24V power supply)
Output signal : 4-20mA/0-5V/0-10V
Average Power consumption : 0.1W@24V DC
O3 measuring : Range: 0~10ppm or 0-100ppm
                            Accuracy: ±6%FS
                            Resolution: 0.01ppm(0~10ppm), 0.1ppm(0~100ppm)
                             zero drift: ±1ppm(0~10ppm), ±5ppm(0~100ppm),
Temperature Measuring : Range: -40°C-80°C
                                              Accuracy: ±5°C (25°C)
Humidity Measuring : Range: 0-100%RH
                                       Accuracy: ±3%RH (25°C)
Pressure range : 90~110Kpa
Long-term stability : 7% /year
Response time : 35S
preheating time : 5 minutes
Data update time : 1S
Repeatability : 2%
Useful life : 24 months
Operating environment : -10~50°C/ 0-80%RH (No condensation)
Overall dimensions : 110×85×44mm

Test environment: temperature: 20°C, Humidity: 50%RH, atmospheres pressure :1pa
