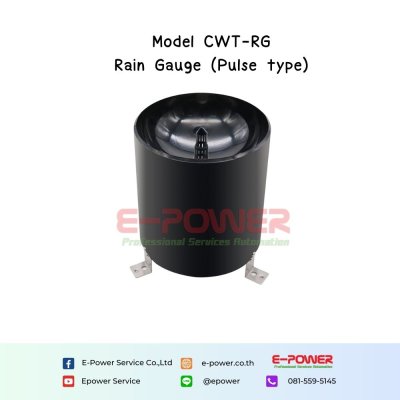

CWT-RG Rain Gauge (pulse type)

Basic parameters

Cylinder diameter : Φ200mm
Resolution : 0.2mm (optional 0.5mm)
Measuring accuracy : ±3%
Point angle : 40° ~ 45°
Output : Pulse
Working environment : -10~+55°C / 0 -95%RH
Raininess : range 0mm~4mm/min (Max 8mm/min)
Pulse input type : Load voltage: 100V
                                Load current: 0.5A

Manual: CWT-RG Rain Gauge manual(pulse type)
