Specification
- Measurement: Direct Current (DC)
- Rated Measuring Current: 500A
- Communication: CAN 2.0 interface
- Accuracy: 0.2% [Temp. Drift＜50ppm]
- Perforation Size: 23.7 mm
- Power Supply: +18 ~ +28Vdc
1.Limit Parameters
| Parameters | Symbol | Specs | Condition |
| Overvoltage | Uc | 35Vdc | 400ms |
| Overvoltage | Uc | 32Vdc | 1min |
| Min Operating Voltage | Uc | 18Vdc | Can operate but can't measure |
| Max Operating Voltage | Uc | 28Vdc | Can operate but can't measure |
| Clearance | Dci | 7mm | / |
| Creepage Distance | Dcp | 7.2mm | / |
| Insulation Resistance | Ris | 500MΩ | 500V, 1min |
| IP Rating | / | IP56 | / |
| AC Insulation Test Voltage | / | 5kV | 500Hz, 1min |
| DC Insulation Test Voltage | / | 5kV | 1min |
2.Standard Parameters
| Parameters | Symbol | Max Value | Typical Value | Min Value | Unit | Condition |
| Rated Measuring Current | Ipn | -500 | / | 500 | A | / |
| Max Measuring Current | Ipm | -600 | / | 600 | A | / |
| Supply Voltage | Uc | 18 | 24 | 28 | V | / |
| Operating Current @Ip=0A | Ic | / | 30 | / | mA | Uc=12V, T=25°C |
| Operating Current @IPM | Ic | / | 160 | / | mA | Uc=12V, T=25°C |
| Linearity Error | L | -0.1 | / | 0.1 | % | ±3σ Full Temperature Range |
| Zero Offset @Ip=0A | Io | -10 | / | 10 | mA | ±3σ Full Temperature Range |
| Accuracy @Ip=±40A | Xg | -60 | / | 60 | mA | ±3σ Full Temperature Range |
| Operating Temperature | Ta | -40 | / | 105 | °C | / |
| Zero Offset Temperature Drift | T off | / | 0 | / | mA/K | / |
| Gain Temperature Drift | T gain | -50 | / | 50 | ppm/K | ±3σ Full Temperature Range |
| Output Noise | Noise | -10 | / | 10 | dB |

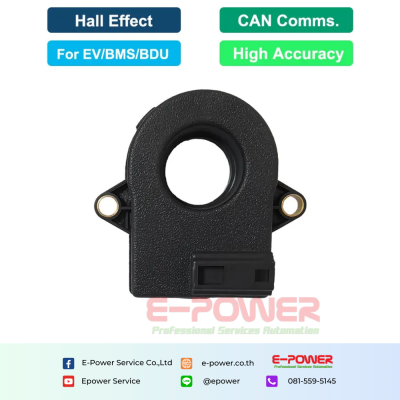

AHBC-CAN CAN Comms. Hall Transducer
Hall Transducer
AHBC-CAN
