Measurement
- Rogowski coil and RMS measurement
- Super-current measurement, direct measurement up to 30000A
- Overload: 1.2 times of rated value
Specification
| Specification | BR-AI | ||||
| Auxiliary Power | DC 24V | ||||
| Consumption | 1W | ||||
| Length of Rogowski coil | 350 mm | 370 mm | 450 mm | 600 mm | |
| Input | Current | 0~(200~1000)A | 0~(1200~2000)A | 0~(2500~5000)A | 0~(6300~30000)A |
| Output | Nominal value | DC4-20mA | |||
| Load resistance | 500Ω | ||||
| Accurancy Class | 0.5% | ||||
| Response Time | 500ms | ||||
| Temperature | Operation: -10 to +55C Storage: -25 to +70C | ||||
| Temperature coefficient | 220ppm/C | ||||
| Installation | Bracket | ||||
| Standards | GB/T 13850 | ||||

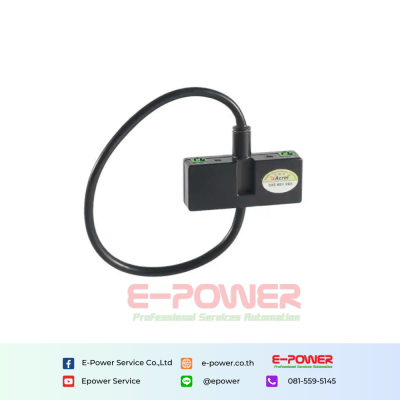

BR Series Rogowski Coil Transducer
Coil Transducer
BR Series
