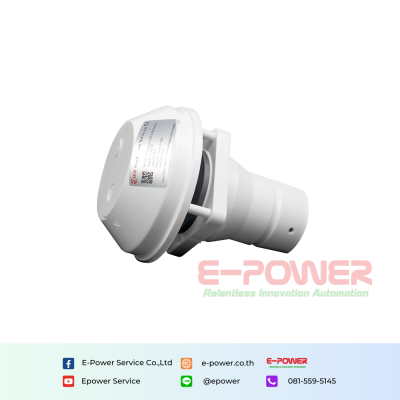

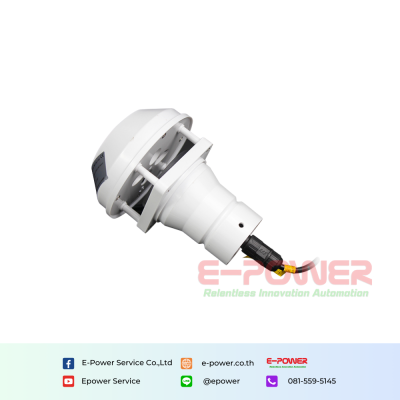

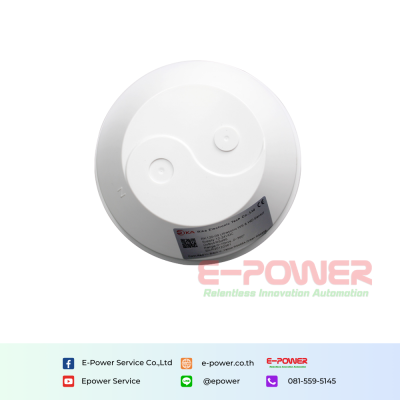

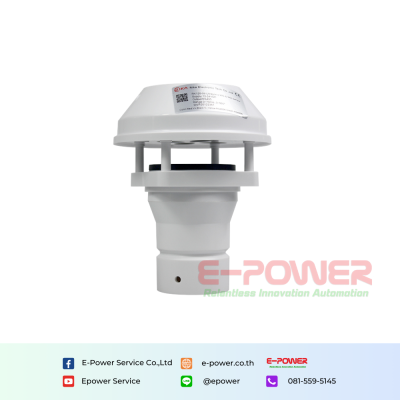

Rika RK120-09 Ultrasonic Wind Speed & Direction Sensor


āļĢāļēāļĒāļĨāļ°āđ€āļ­āļĩāļĒāļ”āļŠāļīāļ™āļ„āđ‰āļē

Product Description

Rika RK120-09 wind speed and direction meter is a kind of measuring instrument which uses the time difference of ultrasonic wave in the air to measure the wind speed and direction.It uses low-power chip with power consumption of only 0.2W, which is especially suitable for solar or battery powered environment with high power consumption requirements. Due to the adoption of new technology and new process, the structure is more compact and compact.

Specifications

ItemTechnical Specification
Wind speedWind direction
Range0 - 70m/s0  - 359°
Resolution0.1m/s1°
AccuracyÂą3ïž…Âą3 °
Power Supply5V,12-24VDC
Power consumption0.2W
Output SignalRS232/RS485(Modbus/NMEA-0183),4-20mA/0-5Voptional
Operating Temperature-40°C-+80°C
Ingress ProtectionIP65
DimensionÐĪ110*140mm
Weight(unpacked)0.22kg
Main materialASA



Product Catalogue: Rika RK120-09 Ultrasonic Wind Speed & Direction Sensor
