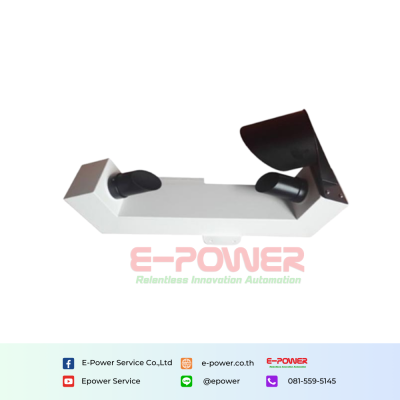

Rika RK300-10S Visibility Sensor
PRODUCT DESCRIPTION
The forward scatter measurement principle and unique design ensure the output accurate and reliable in all weather conditions and will not be influenced by local lights sources, even the flash. With a measurement range of 10m to 10km (Can be extended to 75km), the sensor is constructed from robust aluminum,suitable for use in road and aviation constructed from robust aluminum. Finished with a high quality powder coat, the sensor will provide years of reliable service. Heating of the optical windows and sensor hoods is provided as standard allowing use in the harshest of conditions. Both optical windows are monitored for contamination and the visibility output is automatically compensated to reduce maintenance requirement.
SPECIFICATIONS
| Item | Technical Specification |
| Measurement Range | 5m-10km (Typ.), 5m-30km, 5m-50km (Opt.) |
| Measurement Principle | Forward scatter |
| Resolution | 1m |
| Accuracy | Âą50m when visibility 600m, Âą10% when visibility > 600m |
| Data update rate | 1s (default) |
| Supply | 12-24VDC |
| Output | RS485, RS232 |
| Power Consumption | Approx.1W, (heating: 6W MAX.) |
| Dimension | 646*328*176mm |
| Installation | Hoop installation |
| Lifetime | >10 Years |
| Operating Temperature | -40°C-+50°C@0-100%RH (no condensation) |
| Weight | 20kg |
| Shell Material | Stainless steel |
Product Catalogue: Rika Customized RK300-10 Visibility sensor
