PRODUCT DESCRIPTION

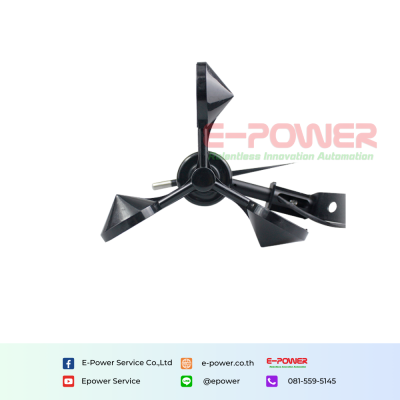

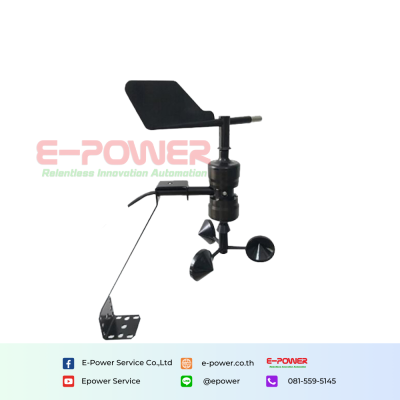

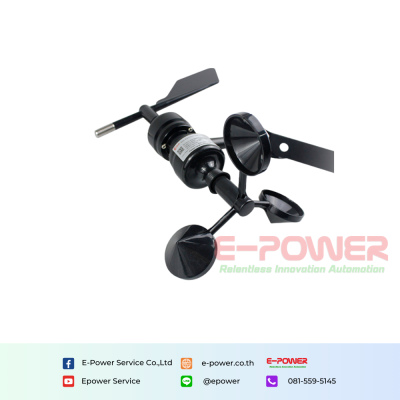

The RK120-01 combined wind speed and direction sensor is assembled with precision-machined ABS and aluminum alloy parts, oïŽering high strength and easy installation. The wind speed section features a traditional three-cup design made of ABS material, delivering excellent starting performance, wide measurement range, superior linearity, and reliable stability. The wind direction section utilizes a low- inertia vane that responds instantly to wind changes. When wind direction shifts, the rear-mounted angle sensor detects azimuth changes and converts them into corresponding electrical signal variations, providing outstanding linearity, high accuracy, and full 360° coverage without blind spots.
SPECIFICATIONS
| Item | Technical Specification | |
| Wind speed | Wind direction | |
| Range | 0-45m/s(current or voltage ouput); 0-70m/s(pulse,RS485,RS232 output) | 0-360° |
| Resolution | 0.1m/s | 1° |
| Accuracy | ¹(0.3+0.03V)m/s ,V is current wind speed | ¹3° |
| Starting wind speed | 0.5m/s | |
| Limited wind speed | 75m/s | |
| Supply | 5V(only for digital output),12-24VDC | |
| Output Signal | RS485,4-20mA,0-5V,RS232,pulse(NPN,only for wind speed) | |
| Power consumption | 0.7W max | |
| Operating Temperature | -40°C-+70°C | |
| Ingress Protection | IP65 | |
| Main material | Aluminum alloy and ABS | |
| Storage | 10-60°C @20%-90%RH | |
| Cable length | Default 2.5m,other length is optional | |
| Installation bracket | attached | |
| Weight(unpacked) | 1200g(with bracket) | |
Rika
Rika Sensor
Rika RK120-01C Combined Wind Speed & Direction Sensor
RK120-01C
Combined Wind Speed & Direction Sensor
Wind Speed Sensor
Direction Sensor
