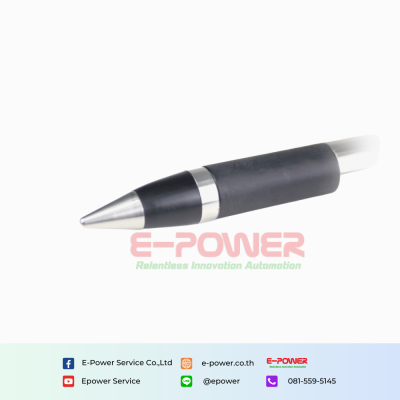

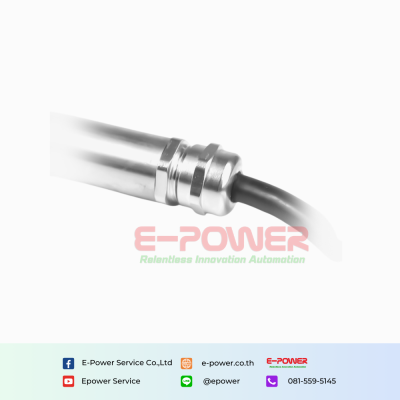

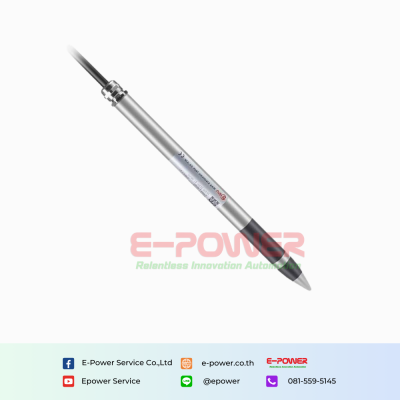

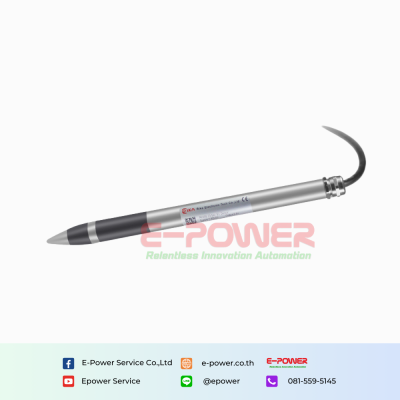

Rika RK500-23 Soil EC Sensor & Soil Salinity Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
PRODUCT DESCRIPTION
The probe of RK500-23 EC/Salinity sensor is made of titanium alloy inner electrode, using tetrafluoroethylene lining,outerelectrode is 316L stainless steel, it has the characteristics of stable performance, high sensitivity and wide application range.RK500-23 is simple in structure, stable in performance and easy to operate. It is used for on-site monitoring of soil water-saltdynamics. lt is an ideal observation instrument for studying the occurrence, evolution and improvement of saline-alkaline soil.
SPECIFICATIONS
| Item | Technical Specification | |
| EC | Salinity | |
| Measuring medium | Soil or similar to soil | |
| Principle | Frequency conversion method | |
| Range | 0ï―1000us/cm, 0ï―2000us/cm,0ï―5000us/cm,0ï―10000us/cm,0ï―200ms/cm, (any range of 0-300ms/cm can be customized, 1ms/cm = 1000us/cm) | 0ï―100000ppm(mg/L) 1ppm(mg/L)=1000ppb(ug/L)=1000000ppt(ng/L) |
| Supply | 7-30VDC(power consumption<0.2W) | |
| Accuracy | Âą1% | |
| Response time | 1s | |
| Output signal | 4-20mA & RS485 at the same time | |
| Electrode | Titanium alloy | |
| Temperature compensation | Automatic compensation | |
| Drift | 0.3%FS/24h | |
| Operating temperature | -20°C-+80°C | |
| Probe material | 316L | |
| Probe dimension | ÎĶ13*175mm | |
| Ingress protection | IP68 | |
| Storage | 10-60°C@20%-90%RH | |
| Cable length | Default:5m | |
