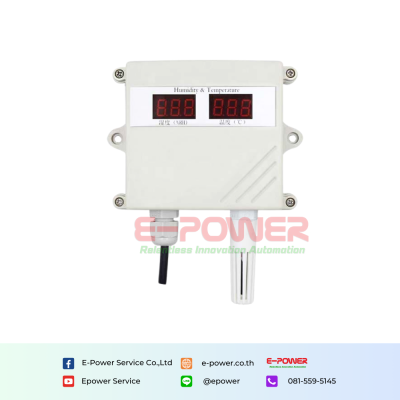

Renke RS-WS-SMG-EX Digital Temperature and Humidity Sensor

Product Description

RS-WS-SMG LCD-EX is a wired temperature humidity sensor, it has a variety of different output methods, such as temperature and humidity sensor modbus, temperature and humidity sensor analog. The default measurement range of this temp humidity sensor is -40°C~80°C temperature and 0~100%RH humidity. Users can replace the temperature and humidity sensor probe at the bottom to meet different measurement needs. Such as: replacing the high-temperature probe to measure the environment of -40~120, replacing the waterproof probe to measure the temperature in the liquid, etc.

Product Features

1. This temperature and humidity monitoring device adopts a high-brightness digital display, no matter in a dark environment or under strong light, the value is clearly visible.
2. The wallmount temperature and humidity sensor has a built-in anti-interference module, which can ensure that it can work normally in a harsh electromagnetic environment.
3. The circuit board of the sensor has undergone MPE three-proofing treatment, which can effectively prevent dust, smoke, and mildew.
4. The temperature and humidity sensor uses a 10-30VDC wide voltage power supply.

Parameters

Power supply: 10~30V DC
Probe working temperature: -40°C~+120°C，default-40°C~+80°C
Probe working humidity: 0%RH-100%RH
Accuracy: Temp: ±0.5°C(25°C), Humidi:±3%RH(60%RH,25°C)
Transmitter circuit operating temperature: -40°C~+60°C, 0%RH~80%RH
Long-term stability: T:0.1°C/y, H:1%RH/y
Response time: T:25s(1m/s Wind speed), H:8s(1m/s Wind speed)
Output signal: RS485,4-20ma,0-5V,0-10V

Product Catalogue: Renke Catalogue
