Product Description

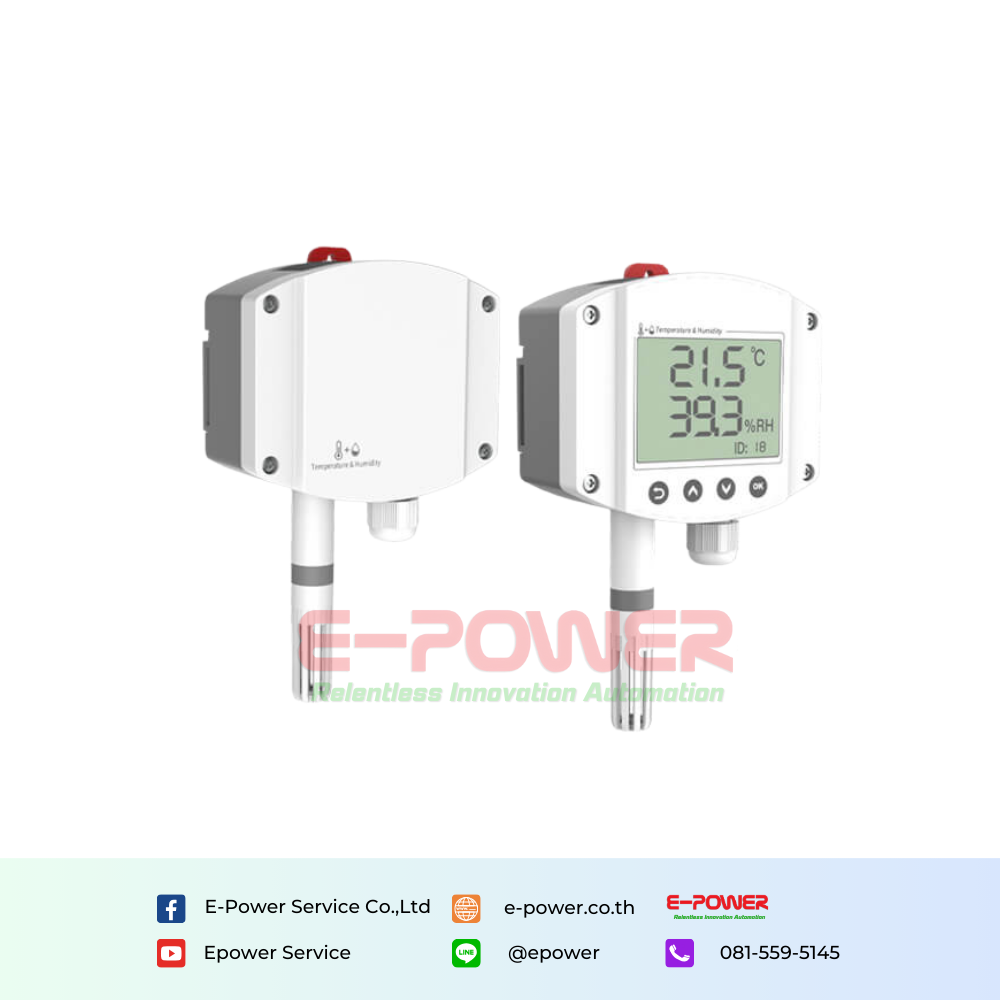

This temperature humidity sensor is based on the RS-WS-2D-EX transmitter with an LCD display, which can directly read the current temperature and humidity values. There are four keys at the bottom to manually set the temperature and humidity calibration values, communication address, baud rate, and device password.
Output signal: RS485/4-20mA/0-5V/0-10V
Product Features
- Using high-precision temperature and humidity measurement unit, long-term stability is good, and drift is small.
- 10~30V wide voltage range power supply.
- Easy to install, can be wall-mounted or rail-mounted.
- High anti-dust protection level (IP65).
- Optional LCD liquid crystal display, beautiful and generous.
- Offer free data platform for remote monitoring, you can view data through PC or APP.
Parameters
| Power supply | DC 10~30V | |
| Temperature range | -40°C~+80°C (-40°C~+120°C optional) | |
| Humidity range | 0%RH-100%RH | |
| Precision | Built-in probe | ¹0.5°C (25°C), ¹3%RH (60%RH,25°C) |
| External probe | ¹0.4°C (25°C), ¹2%RH (60%RH, 25°C) | |
| Resolution | 0.1°C, 0.1%RH | |
| Circuit working environment | 20°C~+60°C, 0%RH~95%RH (non-condensing) | |
| Long term stability | Temperature | 0.1°C/y |
| Humidity | 1%RH/y | |
| Response time | Temperature | 25s (1m/s wind speed) |
| Humidity | 8s (1m/s wind speed) | |
| Hole size | 70mm | |
| Output signal | RS485, 4-20mA, 0-5V, 0-10V | |
