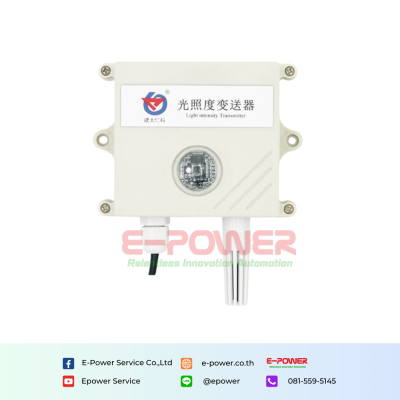

Renke Illumination Sensor

Product Description

An illumination sensor is used for the outdoor measurement of light intensity. The illuminance sensor adopts a wall-mounted waterproof shell. There are two ranges of 0-65535 lux and 0-20 million lux. We provide sunlight sensor and temperature, humidity, sunlight 3 in 1 sensor.

Product Fartures

1. High-precision illuminance detection measuring range 0-60000 Lux, 0-200000 Lux optional.
2.4-20mA/0-10V/0-5V/RS485 multiple output signals are optional.
3. IP65 high protection level, can be used in an outdoor or harsh on-site environment.
4.10-30V DC wide voltage power supply.
5. We offer many types of solar light sensors for different applications. Some light sensors can integrate many other modules to measure many elements.

Parameters

Power supply: 10-30VDC
Accuracy: ±7%(25°C)
Measure range: 0-65535Lux, 0-20WLux
Long-term stability: 5%°C/y
Response time: 0.1s
Output signal: RS485/0-5v/0-10v/4-20ma
