Product Description

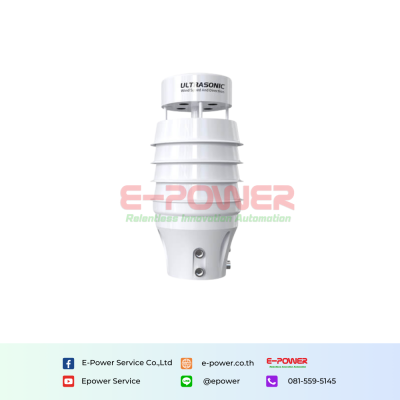

The RS-CFSFX-3-EX ultrasonic anemometer is a measuring instrument that uses ultrasonic waves to propagate in the air to measure wind speed and direction. Its internal use low-power chips, power consumption is only 0.12W. It is especially suitable for solar or battery-powered environments with relatively high power consumption. Thanks to new technology and new technology, the structure is more compact and compact. Optional temperature and air pressure modules are also provided. The shell is made of high-strength ABS material, which is convenient for users to use in different environments. We provide a free cloud platform for customers to view data.
Parameters
| Power supply | 10-30V DC |
| Power consumption | 0.12W(RS485), 1.2W(Analog) |
| Range | 0~40m/s, 0~360° |
| Accuracy | ¹0.5+2%FS (60%RH, 25°C), ¹3° (60%RH, 25°C) |
| Resolution | 0.01 m/s, 1° |
| Working environment | -40ï―80°C, 0ï―95%RH (non-condensing) |
| Wind resistance | 75 m/s |
| Response time | 1s |
| Protection level | IP65 |
| Output signal | RS485/4-20mA/0-5V/0-10V |
| Starting wind speed | 0.5m/s |
