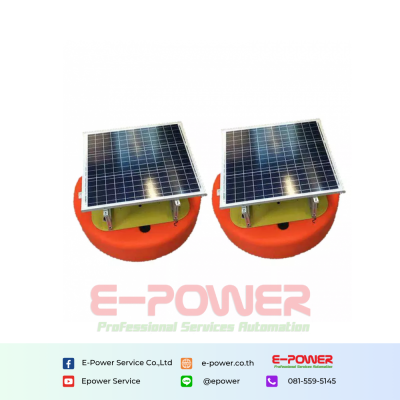

Solar Power Buoy for Water Quality Monitoring

The solar energy full floating automatic monitoring station is a set of economic buoy water quality monitoring data collection platform. The intelligent online monitoring system combines data transmission technology, cloud computing technology, solar power supply technology and modular measurement technology.

รายละเอียดสินค้า

Overview

The solar energy full floating automatic monitoring station is a set of economic buoy water quality monitoring data collection platforms. The intelligent online monitoring system combines data transmission technology, cloud computing technology, solar power supply technology, and modular measurement technology. The system has the characteristics of automatic continuous online monitoring, automatic cleaning, solar power supply, wireless transmission, unattended, and so on.

Basic functions:

  1. Overall design: integrated water quality monitoring, wireless transmission, and solar power supply, easy to use
  2. Cloud operation: Modbus RTU standard protocol; provide cloud setting, operation, display alarm, and other functions.
  3. Lower power consumption: use a solar power supply, and can work continuously on rainy days.
  4. Operating environment: it can operate normally in the environment of 20 ~ 55 , and can be customized according to different regions.
  5. Convenient installation: no need for free field operation, fast installation, labor saving,
  6. Automatic cleaning: regular automatic cleaning by program control to ensure the sensor measurement interface is clean.

Technical parameters:

Monitoring parametersWater Quality Multiparameters, 5-port Multiparameter Sensor
Protective facilitiesBeacon light; GPS (optional)
Power supply48ah @ 12VDC
Solar panel50W @ 12VDC
Data transmissionRS485 (Modbus RTU standard protocol) output, protocol output can be customized according to customer requirements
Size700 * 700 * 610mm
Fixation modeSingle point and two-point anchor bolt fixation
Parameter selectionpH, conductivity, dissolved oxygen, turbidity, temperature, COD, ammonia nitrogen, ORP, chlorophyll, BGA,Fluoride, chloride, transparency, nitrate, etc.,
