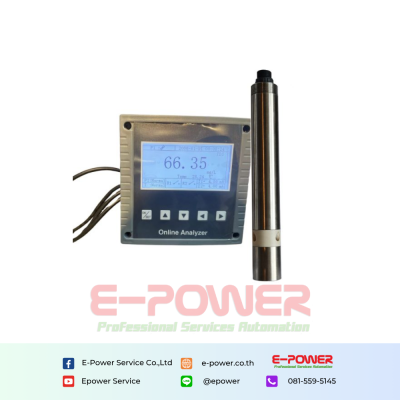

DS285 Inline Digital Total Dissolved Solids (TDS) Sensor
The Inline Total Dissolved Solids (TDS) Sensor adopts a new generation of four-electrode/ six-electrode technology, with a wide measurement range, an automatic switching measurement range, a built-in temperature sensor, and real-time temperature compensation.
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
Overview:
The Inline Total Dissolved Solids (TDS) Sensor adopts a new generation of four-electrode/ six-electrode technology, with a wide measurement range, automatic switching measurement range, a built-in temperature sensor, and real-time temperature compensation. It has excellent anti-pollution ability and will not cause polarization even in a harsh environment for long-term online monitoring. An RS-485 output can be networked without a controller.
Features:
- Digital sensor, RS485 output, support Modbus;
- Wide measurement range, automatic switching measurement range.
- Built-in temperature sensor, real-time temperature compensation;
- Four-electrode/six-electrode technology, no polarization.
Technical parameter:
| Item | Parameters |
|---|---|
| Model | DS285 four-electrode TDS sensor |
| Range | 0-60mg/L (Other ranges can be customized) |
| Measurement accuracy | 3-5% |
| Response time | < 2 sec |
| Protection level | IP68 |
| Max operatingpressure | 1bar |
| Temperature range | 0-50°C |
| Output Signal | Support RS-485,MODBUS protocol |
| Power information | DC 6-12V, current <50mA |
| Probe cable length | Standard 5 meters, longer can be customized |
| Size | ÎĶ22 X 152.5mm |
| Housing material | SS316+PEEK |
