Overview:

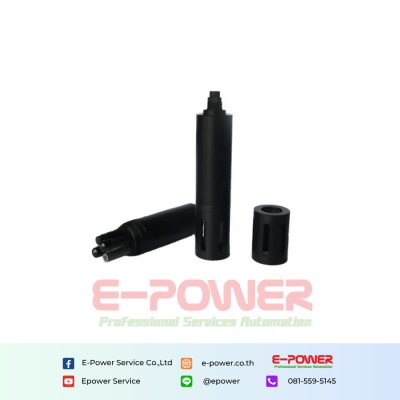

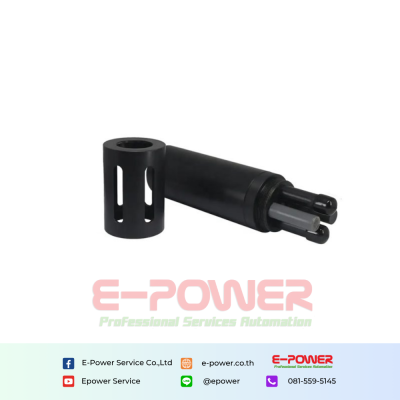

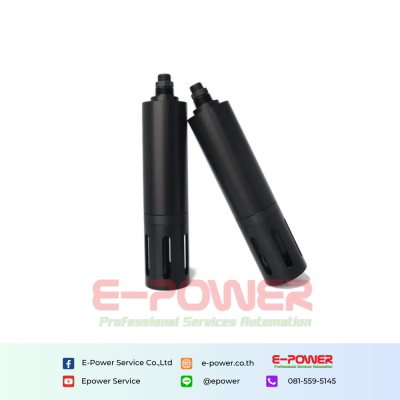

DSN260 Online Electronic Nitrate Sensor, without reagents, green and pollution-free, can be monitored online in real time. It can be installed directly. Compared with the traditional nitrate analyzer, it is more economical, environmentally friendly, convenient, and fast. It adopts RS-485 output and supports Modbus, which is convenient for integration.
Features:
Technical parameter:
Product name | Nitrate sensor |
Model | DSN260 |
Detection principle | Electrode method |
Measurement range | 0-100mg/L |
Measurement accuracy | ïž5% |
Resolution | 0.1mg/L |
Temperature range | 0ï―50 |
Output signal | RS-485 output MODBUS protocol |
Specifications
Waterproof level | IP68 |
Under pressure | 1bar |
Product material | POM |
Product Size | ÎĶ48 X 209mm |
Power information | DC 6~12V, current <50mA |
Cable length | Standard 5 meters, longer can be customized |
