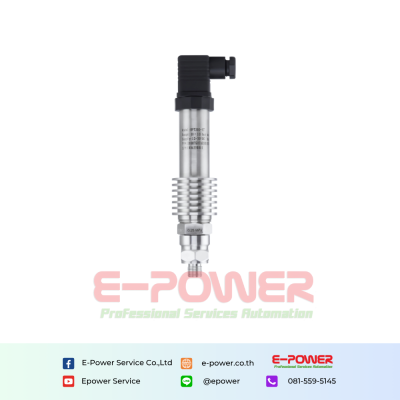

HPT200-HT Pressure Sensor for High Temperature
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
High temperature pressure sensor HPT200-HT uses high quality diffused silicon pressure sensor or sapphire pressure sensor, designed for extreme conditions, the media temperature up to 200°C. With a wide temperature range and precise pressure measurements, it ensures reliability and safety in demanding industrial applications.
Application :
- Biotechnology
- Food Industries
- Medical,Pharmaceutical
- Steam
- Oil & Gas
- Boiler industry
Advantages
01 With Sapphire pressure sensors for max 200
02 2 times range standard overload
03 4 times range burst pressure
04 Fully Welded Stainless Steel Housing
05 Surge (lightning) protection
Technical Data
| Pressure range | -1 to 0..0 to 0.1...0 to 2000bar |
| Output | 4~20mA,0~5V,1~5V,0.5~4.5V,0-10V |
| Power supply | 12-30Vdc,8-30Vdc,5Vdc,13-30Vdc |
| Accuracy | 0.5%F.S |
| Pressure port | G1/4"male, 1/4"NPT male, G1/2"... optional |
| Electronic Port | DIN Hirschmann or direct cable IP67 |
| Medium temp. | -10~125; -10~150; -10~200; -10~250; -10~300 optional. -60~200 by customized. |
| Temp Compensation | 0~80 |
| Zero Temp Drift | 0.5%FS/(100kPa), 0.3%FS/(>100kPa) |
| Overload | 200%F.S |
| Burst Overload | 400%F.S |
| Cooling device | with cooling device |
| Certificate | CE,RoHS |
HPT200-HT Pressure Sensor for High Temperature
Pressure Sensor
HPT200-HT
Pressure Sensor for High Temperature
