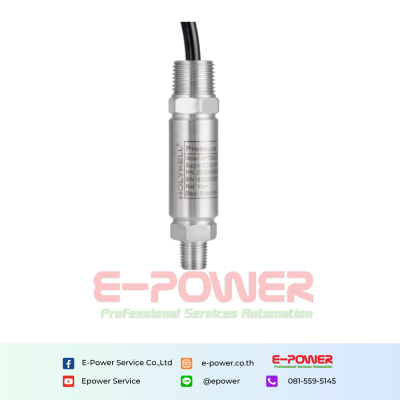

HPT200-EX Explosion Proof Pressure Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
The HPT200-EX intrinsically safe pressure transmitter is designed for use in hazardous environments, and offers a reliable pressure measurement, specifically for the high demands of industrial oil and gas applications.
Application :
- Gas station
- Petrochemical industry
- Crude oil measuring
- Natural gas compressors
- Hydraulic and pneumatic system
- Diesel tank level monitoring
Advantages
01 MEAS TE pressure core, 0.25% F.S
02 316L stainless steel diaphragm
03 High degree of EMC/EMI protection
04 IP68 Ingress waterproof protection
05 Custom absolute and gauge (relative) versions
Technical Data
| Pressure Range | Gauge /Absolute / Negative pressure optional |
| Accuracy | 0.5%F.S.(Typical) 0.25%F.S. 0.1%F.S. (by customized) |
| Long Stability | Âą0.1%F.S. of span/year |
| Working Temp | -20~80(corrosive medium),-40~80(non-corrosive medium); -40~250 by customized |
| Medium Compatible | Compatible with 316L Stainless Steel |
| Output | 4~20mA,0-5V,0-10V,0.5-4.5V,RS485 MODBUS RTU... |
| Power Supply | 7~30Vdc,8~30Vdc,13~30Vdc,5Vdc... |
| Pressure connection port | G1/4"male, G1/2"male, 1/4"NPT male, 1/2"NPT male optional. |
| Electronic connection | 1/2"NPT male thread with outlet cable |
| Explosion-proof rating | Ex ia IIC T6 Ga |
| Certificate | CE RoHS ATEX |
| IP rating | IP68 |
| Response time | 10ms |
| Options | Customize oil filling fluorocarbon oil (O2-compatible), olive-oil, lowest temperature on oil (-50), Special material for Pressure Connection, electrical connection on request, withstand Xylene medium pressure and level top(customized) |
