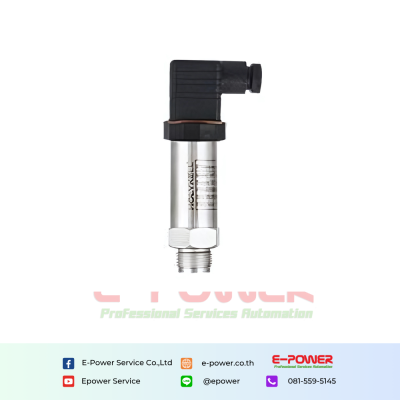

HPT601 Flat Diaphragm Pressure Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Flat diaphragm pressure sensor with sanitary flush diaphragm. All process connections of the flush pressure transmitter are made of stainless steel, fully welded and isolate the process medium from the pressure measuring instrument via a positive seal.
Application :
- Food and beverage industry
- Filling and packing machinery
- Dairy and beverage processing
- Food grade pressure sensor
- Flat diaphragm pressure sensor
Advantages
01 A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured
02 For Sanitary or CIP (Clean-in-Place) Applications
03 316L stainless steel diaphragm, welded SUS304 body construction shock and erosion
04 Custom pressure ranges available
05 Flush process connection eliminates plugging
Technical Data
| Range | 0~20 bar...600 bar optional |
| Output | 4-20mA,0-5V,0-10V,0.5-4.5V,RS485 Modbus RTU,SDI-12... |
| Accuracy | 0.5%F.S or 0.25% by customized |
| Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc,3.5-36Vdc,12Vdc... |
| Pressure port | G1/2ïž,G1ïž,M20*1.5 male Clamp ÎĶ50 mm |
| Working temperature | -40~80(non-corrosive medium) |
| Temp Compensation | 0~80 |
| Zero Temp. Drift | 0.2%FS/ (100kPa) ; 0.1%FS/ (>100kPa) |
| FS Temp. Drift | 0.02%FS/ (100kPa) ; 0.01%FS/ (>100kPa) |
| Response time | 10ms |
| Certificate | CE,RoHS |
| Application | Food ,Juice,milk ,Sanitary liquid industry |
