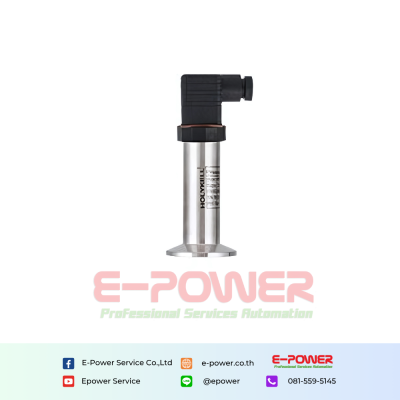

HPT602 Flush Diaphragm Pressure Transmitter With Tri-Clamp
รายละเอียดสินค้า
ดาวน์โหลด
Tri-Clamp type flat diaphragm sanitary pressure transmitter,can be customized to 150 . A reliable, dead-space free sealing between the process connection and the measuring medium is thus assured.
Application :
- Food and beverage industry
- Filling and packing machinery
- Dairy and beverage processing
- Pharmaceutical
- Dosing technology
Advantages
01 For Sanitary or CIP (Clean-in-Place) Applications
02 316L stainless steel diaphragm, welded 316SS body construction shock and erosion
03 Flush process connection eliminates plugging
04 Advanced digital temperature compensation
05 Available with an integral cooling extension for high temperature applications
Technical Data
| Range | Clamp flush type -1 bar-0-0.1 bar...100 Bar Optional |
| Output | 4-20mA,0-5V,0-10V,0.5-4.5V,RS485 Modbus RTU,SDI-12 |
| Accuracy | 0.5%F.S or 0.25%F.S by customized |
| Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,3.5-36Vdc,12Vdc |
| Pressure port | G1/2＂,G1＂,M20*1.5 male Clamp Φ50 mm |
| Working temperature | -40~80(non-corrosive medium) |
| Temp Compensation | 0°C~80°C |
| Zero Temp. Drift | 0.2%FS/ (100kPa) ; 0.1%FS/ (>100kPa) |
| FS Temp. Drift | 0.02%FS/ (100kPa) ; 0.01%FS/ (>100kPa) |
| Response time | 10 ms |
| Certificate | CE,RoHS |
| Application | Food ,Juice,milk ,Sanitary liquid industry |
