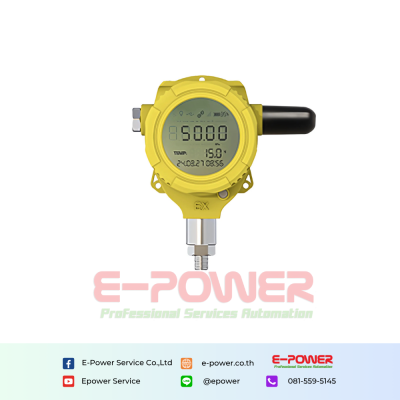

H2601 Wireless Pressure Sensor with IoT Cloud Platform
Wireless pressure sensor H2601 is a cutting-edge solution designed for remote pressure monitoring. Featuring a robust design with IP68 and explosion-proof housing, it provides accurate real-time data transmission via LoRa or 4G network, ensuring reliability in harsh conditions. With Holykell cloud platform supported, it offers an ideal solution for wireless pressure monitoring in various industrial and environmental applications.
Application :
- Water and Wastewater Management
- Fire System
- Smart Agriculture
- Oil and Gas Monitoring
- Building Management Systems
Advantages
01 2G/3G/4G/LoRa/Bluetooth supported
02 High accuracy up to 0.25%F.S
03 Device distribution and position tracking
04 Low power consumption lithium battery, max 10 years service life
05 Enhanced data storage capacity, capable of storing up to 655,360 data entries
06 Strong cloud platform, remote monitoring and setting via a PC/APP
07 Fast data acquisition & reporting, max 1 sec
Technical Data
| Items | H2601 Pressure sensor | |||
| Display | Segment LCD Screen | |||
| Measurement Accuracy | Typical | H2601 0.5% F.S | H2602 0.5% F.S | H2603 0.5% F.S |
| Customized | 0.25% F.S,0.1% F.S | 0.25% F.S | 0.25% F.S, 0.1% F.S | |
| Connection | Typical | G1/2 male, G1/4 male, 1/2"NPT male,1/4"NPT male | G1/2 male, 1/2"NPT male | M32X1.5 |
| Measuring Range | 0-0.01...100Mpa optional | -50~250°C optional | 0-1m...100m optional | |
| External Power Supply Voltage | 5-36VDC | |||
| Communication | 4G, LoRa | |||
| Operating Power Consumption | 4G0.54W, LoRa 0.432W | |||
| Operating Temperature | -30°C~70°C (media does not crystallize) | |||
| IP Rating | IP68 | |||
| Explosion-proof Rating | ExdIIBT6 | |||
| Battery Capacity | Non-rechargeable Battery: 3.6V, 38Ah Rechargeable Battery: 3.6V, 13Ah | |||
| Battery Life | Up to 2 years (4G); 5 years (LoRa) | |||
