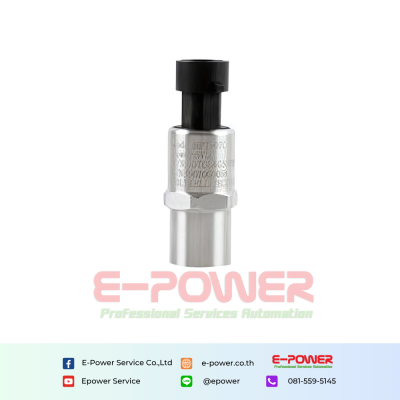

HPT907C Economic Air Pressure Sensors
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Economic air pressure sensors is especially designed for Racing Car and Track gas brake systems, it sets a new performance standard for low cost, high volume, commercial and industrial applications.
Application :
- Hydraulic Pressure Monitoring
- Vehicle Brake System Monitoring
- Breathing machine pressure sensor
- Hydraulic Control Monitoring
- Off Highway Vehicles
- Air pressure sensor
Advantages
01 Error: Âą2%F.S. (including 0 ~ 90 temperature error)
02 MEMS technology
03 Temperature compensation, signal amplification
04 EMI protection; CE Approved
05 Wide voltage power supply (5~24VDC)
06 Reverse polarity protection and short circuit protection
Technical Data
| Parameter | HPT907C |
| Body materials | SUS304 stainless steel |
| Overload | 150% F.S |
| Accuracy | 1.0%F.S |
| Working Temp | -40~80(non-corrosive medium),-20~80(corrosive medium) |
| Storage Temp | -40~125(Nitrile rubber sealing ring), -30~150(fluororubber rubber sealing ring) |
| Temperature Compensation | 0~50 |
| Medium | Air, water, oil and other non-corrosive, non-solvent medium |
| Signal Output | 0.5-4.5V ratiometric |
| Power Supply | 5VdcÂą5% |
| Supply current | <10mA |
| Output impedance | 2.5kÎĐ |
| Pressure cycle life | 50,000,000 (10%-90% span) |
| Connector | 3 Pins Packard Connector |
| Pressure connect port | G1/4" male, 1/4"NPT female or by customized |
| Vibration | 10Hz, 3mm/hour |
| IP Rating | IP65 |
