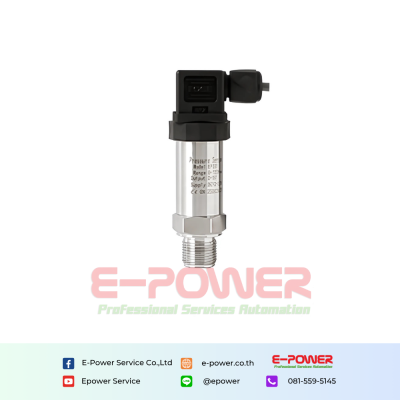

EP200 Industrial Pressure Sensor with Diffused Silicon Core
Designed with a high-performance diffused silicon sensing core, the EP200 Series pressure sensor integrates a dedicated signal conditioning circuit that converts millivolt signals into standard current outputs. It can be directly connected to PLCs, industrial controllers, smart instruments, or data acquisition systems. This pressure transmitter features a compact, lightweight, and fully stainless steel-sealed design, enabling reliable operation even in corrosive environments.
Application :
- Process control
- Automotive industry
- Medical equipment
- HVAC systems
- Pipeline systems
Advantages
01 All-metal construction with 316L stainless steel diaphragm for exceptional durability and corrosion resistance
02 High accuracy up to Âą0.5% F.S. ensures reliable and consistent pressure readings over time
03 Multiple connector options: Hirschmann, cable-out, and M12 for flexible installation
04 Resistant to shock and vibration, suitable for harsh industrial applications
05 Wide pressure range coverage up to 60MPa
06 Supports absolute, gauge, and sealed pressure types
Technical Data
Pressure Sensor Specifications| Measuring range | 0~35kPa...60MPa |
| Measuring pressure | Gauge, absolute and seal pressure optional |
| Accuracy | Âą0.5%F.S |
| Medium temp. | -30°C-105°C |
| Compatible medium | Compatible with 304 Stainless Steel |
| Output signal | 4~20mA,0~5V,0-10V,0.5-4.5V Ratiometric / Non-ratiometric |
| Power supply | 12~30Vdc, 12~30Vdc, 12~30Vdc, 5Vdc,5Vdc |
| Electrical connection | DIN43650 Hirschmann, cable-out, M12 |
| IP rating | IP65 |
