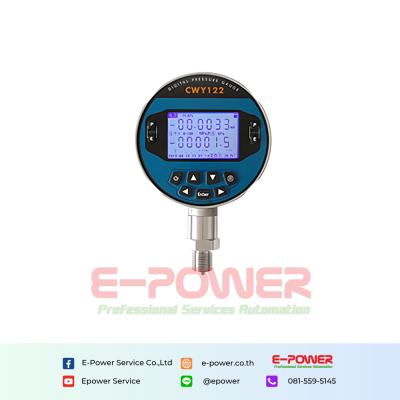

CWY122 Digital Pressure Gauge
The CWY122 digital pressure gauge is a portable tool designed for high-precision pressure, voltage, and current measurements. It features pressure leak testing, pressure switch checks, environmental temperature measurement, and a DC24V power output. The gauge includes peak pressure recording, file storage, and leak testing capabilities. Suitable for field and lab use, it connects to automatic pressure calibration systems and verifies various pressure instruments.
Application :
- Aerospace
- Construction
- Metallurgy & Power
- Petroleum & Chemical
- Food & Pharmaceuticals
- Instrumentation manufacturing
Advantages
01 High-precision measurement up to Âą0.1%F.S/Âą0.05%F.S/Âą0.02%F.S
02 Versatile for pressure leak detection, pressure switch testing, environmental temp. measurement
03 High-precision digital voltmeter and ammeter
04 RS485/RS232 communication for real-time data transfer
05 Compatible with automatic pressure calibration systems
Technical Data
| Measuring range | (-0.1~250)MPa by customized | ||
| Accuracy | Âą0.1%F.S(typical),Âą0.05%F.S/Âą0.02%F.S(by customized) | ||
| Power supply | Battery | ||
| 5V power adapter(AC220V to DC5V/1A, USB-T plug, meter has a charging indicator light, red for charging & green when fully charged | |||
| Electrical connection | Standard ÎĶ4mm jack | ||
| Output connection | Standard ÎĶ4mm jack | ||
| Pressure interface | Standard gauge interface M20Ã1.5mmDifferential pressure gauge interface: Tail-type quick connector, compatible with inner diameter 4mm PVC or silicone hose;Pressure fittings customizable | ||
| Ambient temperature | 0~50°C | ||
| Atmospheric pressure | 86~106kPa | ||
| Item | Range | Resolution | Index |
| Voltage measurement | (-50~50)V | 0.1mV | Âą(0.01%R.D+0.005%FS) |
| Current measurement | (-25~25)mA | 0.1uA | Âą(0.01%R.D+0.005%FS) |
