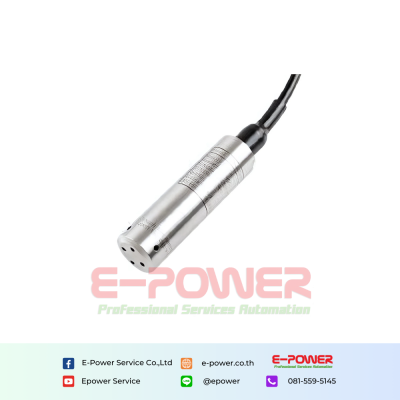

HPT604 Submersible Water Level Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
The Submersible Water Level Sensor is a general purpose submersible hydrostatic level transmitter. It adopts an imported high-quality piezoresistive sensor, robust 316L stainless steel housing and a hydrometric cable with a ventilation tube making it a reliable and cost-effective solution for a wide variety of industrial-level measurement applications. It can keep working fine in liquids for more than ten years.
Application :
- Hydrostatic level measurement
- Water pressure level measurement
- Deep well and groundwater monitoring
- Sea water level measurement and control
- Borehole water level measurement
- Level measurement in pumping station
Advantages
01 316SS all-welded stainless steel body and 316L stainless steel diaphragm
02 Unique 8 pressure holes design
03 IP68 full sealed plastic waterproof design
04 Construction shock and erosion
05 Optional lifetime lightning protection
Technical Data
| Range | 0~0.5 M...500 M H2O optional 80m max for SDI-12 signal |
| Output | 4-20mA,0-5V,1-5V,0-10V,0.5-4.5V,SDI-12,RS485 Modbus RTU... |
| Power supply | 7-30Vdc,8-30Vdc,13-30Vdc,5Vdc,12Vdc,3.5-36Vdc... |
| Accuracy | 0.5%F.S standard, 0.25%F.S by customized |
| Working temperature | -40~80(non-corrosive medium) |
| Temp Compensation | 0~80 |
| Zero Temp. Drift | 0.2%FS/(100kPa), 0.1%FS/(>100kPa) |
| FS Temp. Drift | 0.02%FS/(100kPa), 0.01%FS/(>100kPa) |
| Electronic connection | Fixed cable and water proof IP68 |
| Response time | 10 ms |
| Cable | PE, PUR, FEP cables with vents |
| Certificate | CE,RoHS |
