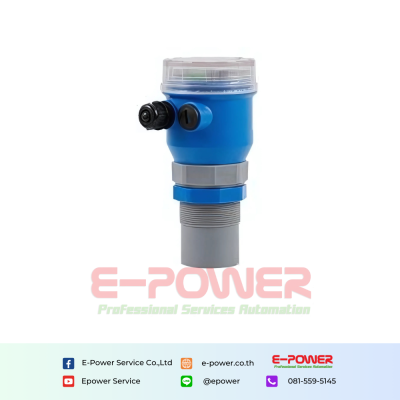

The non contact ultrasonic liquid level meter have all gold-plated circuit boards, internal electromagnetic shielding and software digital filter are tested for (industrial) 48 hour under high and low temperature aging. It promises higher and long-term reliability.
Application :
Advantages
01 Support M60*2 mm threaded into type and coil clamping type installation
02 Many model output optional customizable 4-20ma three-wire system
03 Less than 200ms responsible time to make sure more accuracy
04 Wide range of application,Sealed high-temperature toxic volatile
05 Housing adopts the NLEPE synthetic material IP66 waterproof,Anti-Skid,Anti-corrosion
06 High quality terminal blocks ,Excellent anti-jamming is strong, long term stability
Technical Data
| Level Range | 5, 7,10,12,15m optional |
| Output | 1~5V/0~5V,4-20mA/RS485,RS232/NPN swith or relay |
| Bline Zone | 5m range: 400mm; 5m~10m range: 500mm; 10m~15m range: 600mm |
| Power supply | DC24V/300mA |
| Working temp | -20 ~60 |
| Pressure port | M60 x 2 or ÎĶ61mm hole with gasket (5m-15m range) DN80 nonstandard flange (20m-30m range) |
| Application | Liquids,solids |
