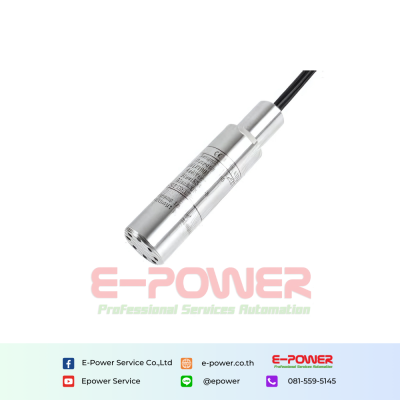

Submersible Fuel Level Sensor is commonly known as "fuel probe", which is mainly used to measure the level of fuel, diesel or gasoline tanks. The probe is designed with a filter screen, which can filter most of the impurities and ensure the stability of the measurement.
Application :
- Can be used with diesel generators and wireless modules
- Monitoring of Gasoline & Diesel Fuel Tanks
- Level Measurement in Ballast Tanks
- Level Measurement in Oil Tanks
- Monitoring of Contain Coolant for Diesel Engines
Advantages
01 Unique impurity filter screen design for measurement accuracy
02 Customized FEP cable without fear of any corrosive environment
03 Measuring range 50m max
04 CE, RoSH and ATEX Approved
05 Throw in any fuel more than 10 years
Technical Data
| Range | 0-0.05 Bar5 Bar / 0-0.5M..50m fuel level |
| Output | 4-20mA,0-5V,0.1-5V,0-10V,0.5-4.5V,RS485 Modbus RTU |
| Power supply | 10-30Vdc,8-30Vdc,13-30Vdc,5Vdc±5%,12-30VDC,3.5-36Vdc |
| Accuracy | 1.0%F.S, 0.5%F.S optional |
| Working temperature | -30-80°C(non-corrosive medium) |
| Temp Compensation | 0°C~50°C |
| Zero Temp. Drift | 0.75%FS/°C（100kPa）；0.5%FS/°C（>100kPa） |
| FS Temp. Drift | 0.05%FS/°C（100kPa）；0.03%FS/°C（>100kPa） |
| Electronic connection | Fixed cable and water proof IP68 |
| Response time | 10 ms |
| Cable | PUR, PE, FEP cable with vents |
| Certificate | CE,RoHS ATEX ExiaII CT6 Ga |
HPT604-Fuel Submersible Fuel Level Transmitter
Fuel Level Transmitter
Level Transmitter
Transmitter
Submersible Fuel Level Transmitter
HPT604-Fuel
