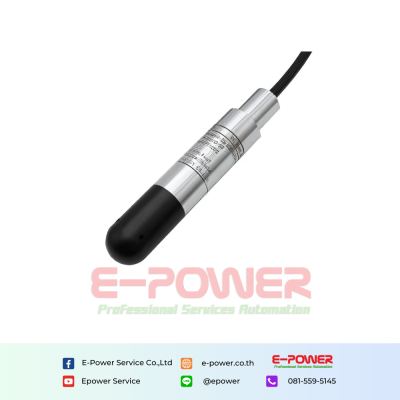

HPT604-BH High Performance and High Stability Submersible Level Sensor
āļĢāļēāļĒāļĨāļ°āđāļāļĩāļĒāļāļŠāļīāļāļāđāļē
āļāļēāļ§āļāđāđāļŦāļĨāļ
Submersible level sensor with high accuracy up to 0.25%FS. It is designed with a PVDF filter cover design so that the stainless steel probe will not spark against the SST tank.
Application :
- Dry, thunderstorm, rain or other harsh enviornments
- Tap-water supply system
- Swimming pool level control
- Fuel/oil/diesel/petrol level measurement
- Refinery
Advantages
01 High accuracy up to 0.25%F.S with imported TE diffusion sillicon.
02 SUS304 housing and SUS316L diaphragm for use in harsh enviornments.
03 High quality PUR cable with 5 years warranty, water and fuel resistance.
04 Lightning and surge protection digital circuit board.
Technical Data
| Brand | Holykell |
| Model | HPT604(Type BH) |
| Range | 0~0.5m...200 m H2O optional 80m max for SDI-12 signal |
| Output | 4~20mA,0~5V,1~5V,0~10V,0.5~4.5V, SDI-12,Dual 4-20mA,RS485 |
| Power Supply | 7-30Vdc,8-30Vdc,13-30Vdc,5VdcÂą5%,12Vdc,12-30VDC,3.5-36Vdc |
| Accuracy | Better than 0.25%F.S |
| Working Temperature | -30°C~+80°C(non-corrosive medium) |
| Cable | PUR/PE/FEP cable optional |
| Certification | Exia IICT6, TUV RoHS and CE |
HPT604-BH High Performance and High Stability Submersible Level Sensor
Submersible Level Sensor
Level Sensor
Sensor
High Performance and High Stability
HPT604-BH
HPT604
